TX-NR6100 7.2 Channel A/V Receiver (Phono Input)

SKU eq-1714

8K THX certified A/V receiver, dedicated phono input, 4K enhanced gaming
Write a review
| Ask a question
sale $799.00
...
TTL Rewards icon Earn up to 7990 Reward Points with this purchase! Read more
  • Get more info on our FREE SHIPPING terms
  • 📦 Standard Shipping ships within 1-3 Business Days
  • 🌎 International Shipping Experts, Fully Tracked
  • ⇨ Need a gear recommendation or a customized package?
  • Contact our support team for all your questions!

    Contact support for recommendations or customization questions

    We answer requests Mon-Fri 10am-6pm EST

  • Lab Overview
  • Review & Q+A
  • Tagged

Lab Overview

📌LAB POINTS

  • THX-certified 8K audio/video receiver
  • 210 watts per channel
  • dedicated phono input (moving magnet) + analog, USB, and Digital Audio inputs
  • HDMI 2.1 video inputs w/ 4K/120Hz HDR pass-through + ultra-fast motion designed for gaming
  • 5.2.2-channel Dolby Atmos and DTS:X playback
  • SMART AV Receiver™ works w/ Sonos, Chromecast, AirPlay 2 + DTS Play-Fi; includes Spotify, Amazon Music HD, Pandora, TIDAL, Deezer, + TuneIn streaming services
  • AccuReflex phase-matching solution for Atmos-enabled speakers

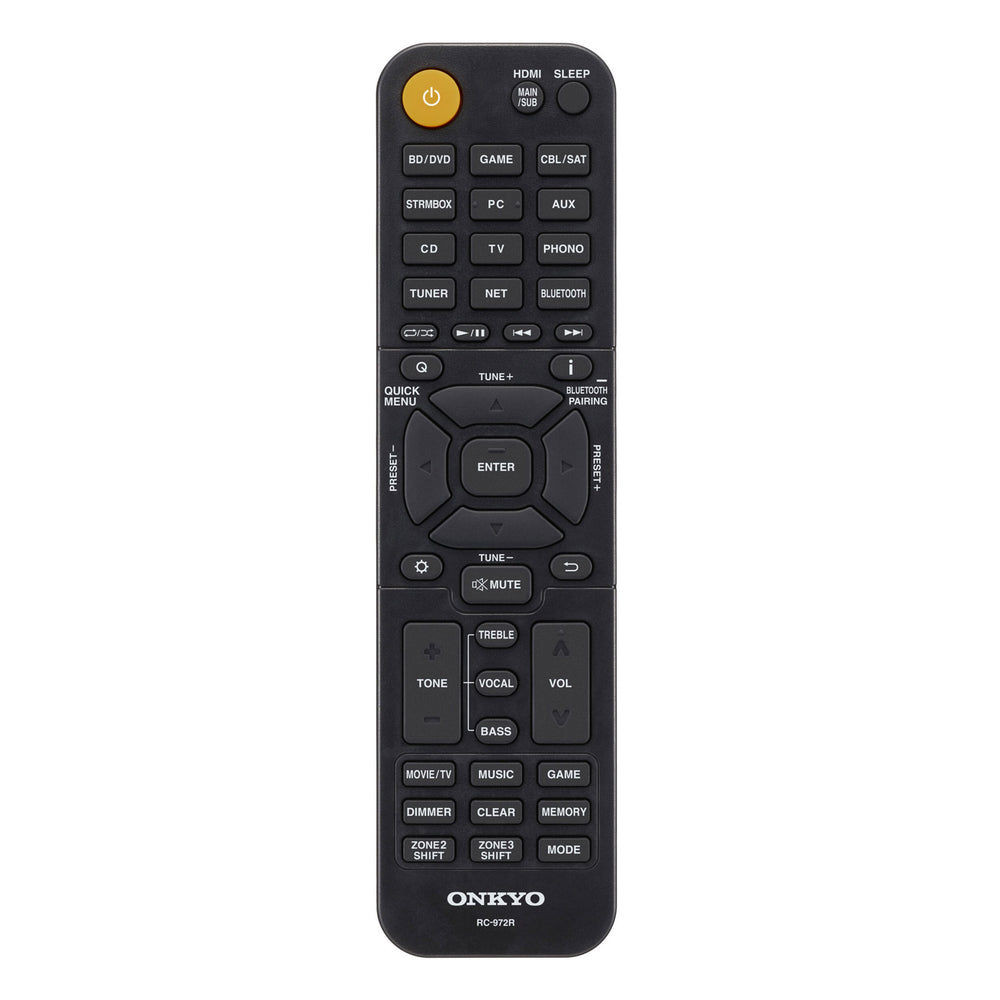

  • remote control included

"Rigorously tested to receive the coveted THX Select Certification, the Onkyo TX-NR6100 7.2-Channel AV Receiver delivers precision sound and images. With an emphasis on an enhanced gaming experience, own your opponents with HDMI 2.1 enhancements for gamers: 4K/120Hz HDR pass-through enables ultra-fast motion -VRR (Variable Refresh Rate) eliminates lag, stutter, and frame-tearing for fluid gameplay. – ALLM (Auto Low Latency Mode) optimizes latency from source to screen – QFT (Quick Frame Transport) limits lag for a smoother experience." - Onkyo

🔎TECH SPECS

  • Power Output: 210 W/Ch (6 ohms, 1 kHz, 10% THD,1-ch driven) 100 W/Ch (8 ohms, 20 Hz–20 kHz, 0.08% THD, 2-ch driven, FTC)
  • Dynamic Power: 240 W (3 ohms, Front) 210 W (4 ohms, Front) 120 W (8 ohms, Front)
  • Total Harmonic Distortion + Noise: 0.08% (20 Hz–20 kHz, half power)
  • Input sensitivity and impedance: 200 mV rms/47 k-ohms (Line) 3.5 mV rms/47 k-ohms (Phono MM)
  • Rated RCA output level and impedance: 1 V rms/470 ohms (Subwoofer pre-out) 200 mV rms/470 ohms (Zone 2/Zone B line-out)
  • Frequency response: 10 Hz–100 kHz/+1 dB, -3 dB (Direct/Pure Audio)
  • Tone control: ±10 dB, 20 Hz (Bass) ±10 dB, 20 kHz (Treble)
  • Signal-to-noise ratio: 106 dB (Line, IHF-A) 80 dB (Phono, IHF-A)
  • Speaker impedance: 4–16 ohms

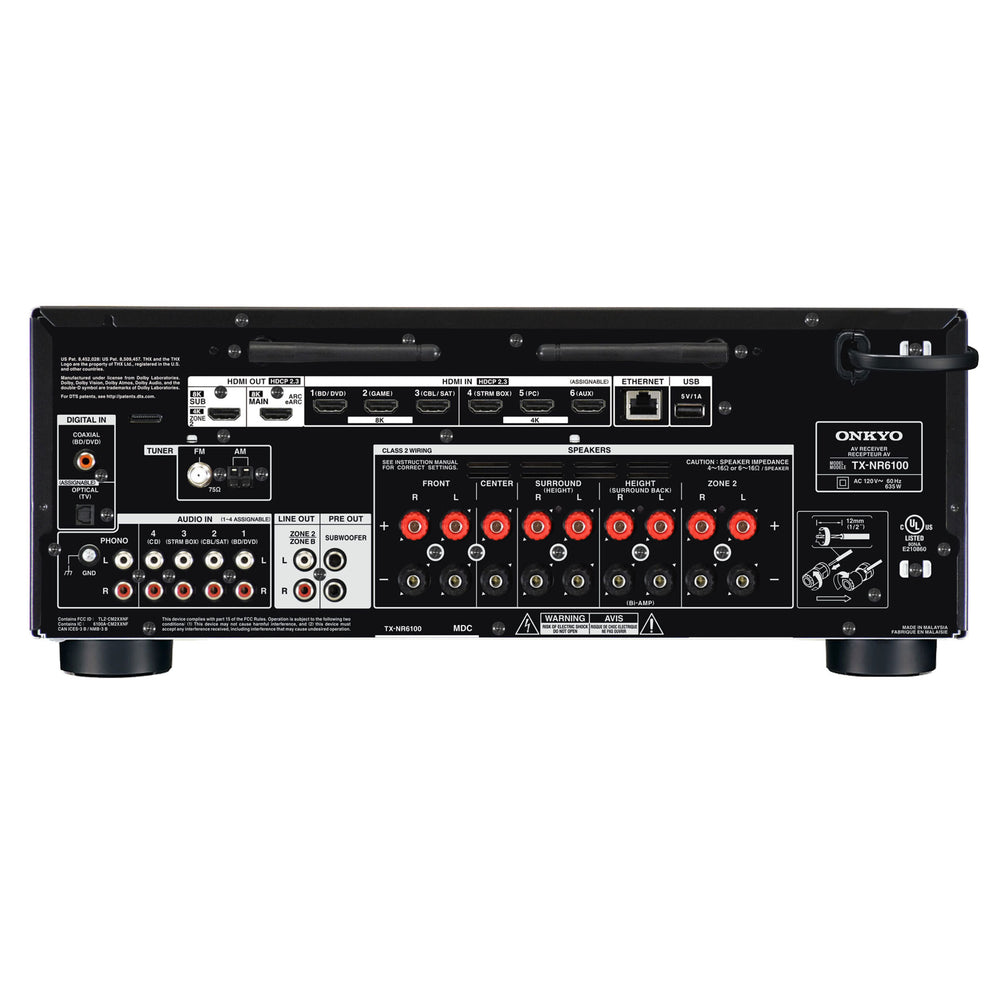

  • Inputs: 6x HDMI, Ethernet, USB, 1x Phono RCA pair, 4x RCA pair, 1x coaxial, 1x optical, 1x 1/8" stereo TRS
  • Outputs: 2x HDMI, Ethernet, USB, 1x line out, 1x subwoofer / pre out, 9x speaker terminal pair, 1x 1/4" headphone out
  • Dimensions (W x H x D): 21˝x 10 7/16˝x 18 7/16˝/ 534 x 265 x 468 mm
  • Weight: 27.7 lbs / 12.5 kg

📦COMES WITH

  • remote control
  • indoor FM antenna
  • AM loop antenna
  • speaker setup microphone
  • AAA batteries
UPC: 889951003489
