LAB POINTS

• 250 W/Ch THX Certified Select RZ Series Dynamic Audio Amplification
• HDMI terminals support HDR10+, Dolby Vision, & BT.2020 color
• Variable Refresh Rate, Auto Low Latency Mode, & Quick Frame Transport
• Smart Receiver Works with: Sonos, Chromecast, AirPlay 2, DTS Play-Fi, Spotify, Amazon Music HD, Pandora, TIDAL, Deezer, & TuneIn
• Dolby Atmos and DTS:X playback (5.2.4-ch) + Dolby Atmos Height Virtualizer
• 11.2-ch processing and pre-outs for 7.2.4 layouts
• IMAX Enhanced certified signature sound by DTS:X
• AccuReflex phase-matching solution for Dolby Atmos enabled speakers
• HDMI Main Out with eARC (enhanced Audio Return Channel)
• HDMI Sub/Zone 2 Out connects a second display or projector
• Premium build w/ high grade connectors + terminals
• Refined chassis, HDMI board, DAC, Digital/Analog inputs, power-amp grounds and power lines
• DSP-based Vocal Enhancer improves vocal/dialog audibility
• OSD function shows A/V input/output signal data, playback settings, and network info

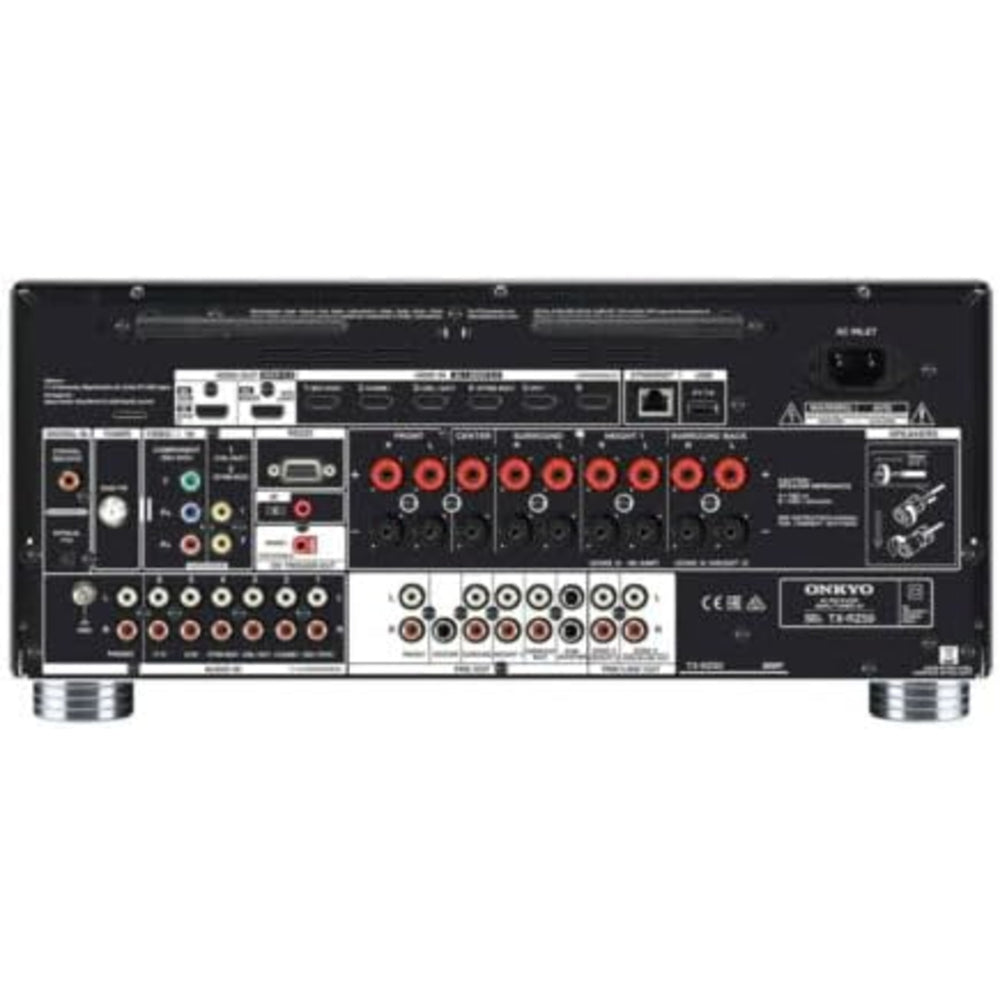

• boasts many HDMI 2.1 ports: 1 front input, rear Main [eARC] & Sub/Zone 2, 1 assignable component video input, 2 assignable composite video inputs, 2 assignable digital audio inputs (1 coaxial + 1 optical)
• 6 assignable analog RCA audio inputs
• 1 phono input with built-in low-noise MM equalizer for turntables
• 1/8˝ (3.5 mm) mic input for AccuEQ/Dirac Live (front)
• 1/4˝ (6.35 mm) headphone jack (front)
• Zone 2/Zone B and Zone 3 analog RCA pre/line-level outputs
• 11 banana-plug-ready screw-type speaker posts (including exclusive Zone 2 outputs)
• 10BASE-T/100BASE-TX Ethernet terminal for network and IP control
• USB input (5 V/1 A) for audio playback (rear)

TECH SPECS

• Amp Power output (All channels): 250 W/Ch (6 ohms, 1 kHz, 10% THD, 1 channel driven) & 120 W/Ch (8 ohms, 20 Hz–20 kHz, 0.08% THD, 2 channels driven, FTC)
• Dynamic power 250 W (3 ohms, Front), 220 W (4 ohms, Front), 130 W (8 ohms, Front)
• (Sub Mode output) support 8K/60p (4:2:0/10-bit), 8K/30p
  (4:4:4/10-bit), 4K/120p (4:4:4/10-bit) video passthrough
• Total Harmonic Distortion + Noise: 0.08% (20 Hz–20 kHz, half power)
• Input sensitivity and impedance: 200 mV rms/47 k-ohms (Line) & 3.5 mV rms/47 k-ohms (Phono MM)
• Rated RCA output level and impedance: 1 V rms/470 ohms (Subwoofer pre-out) 200 mV rms/470 ohms (Zone 2/Zone B line-out)
• Frequency response: 5 Hz–100 kHz/+1 dB, -3 dB (Direct Mode)
• Tone control: ±10 dB, 20 Hz (Bass) ±10 dB, 20 kHz (Treble)
• Signal-to-noise ratio: 106 dB (Line, IHF-A) 80 dB (Phono, IHF-A)
• Speaker impedance: 4–16 ohms
• Video Input sensitivity/output level and impedance: 1.0 Vp–p/75 ohms (Component Y), 0.7 Vp–p/75 ohms (Component Pb/Pr), 1.0 Vp–p/75 ohms (Composite)
• Tuning frequency range: FM 87.5 MHz–107.9 MHz AM 530 kHz–1,710 kHz
• FM/AM preset memory: 40 stations
• Power supply: AC 120 V~, 60 Hz
• Power consumption: 850 W
• Standby Power consumption: 0.1 W
• Dimensions: (W x H x D) 17 1/8˝ x 7 15/16˝ x 15 11/16˝ (435 x 201.5 x 398mm)
• Weight: 30.9 lbs. / 14.0kg
