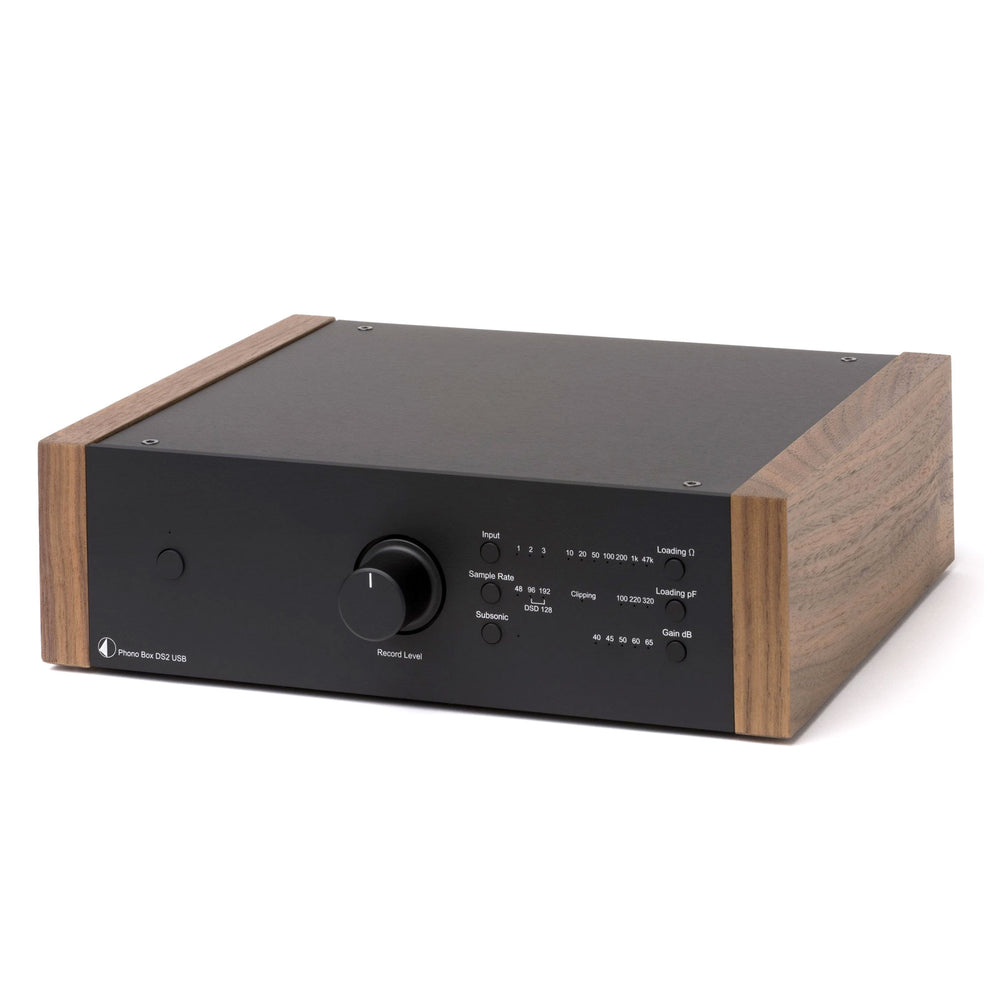

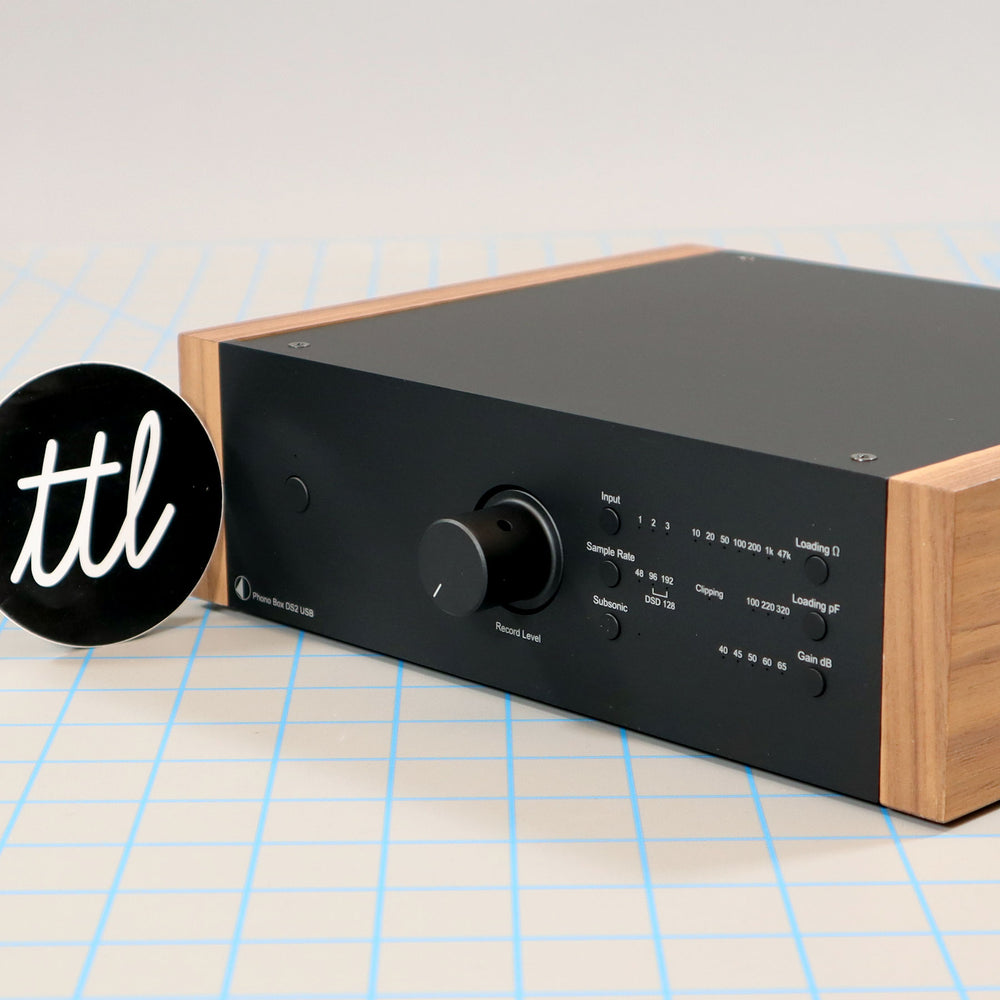

Phono Box DS2 USB Phono Preamp - Black / Walnut

SKU eq-1816

compatible w/ MM or MC cartridges, selectable impedance + capacitance, analog + digital outputs
Write a review
| Ask a question
sale Current Price$499.00 Original Price$800.00
Turntable Lab Exclusive Special
save $300 on this component while supplies last
TTL Rewards icon Earn up to 4990 Reward Points with this purchase! Read more
  • Get more info on our FREE SHIPPING terms
  • ūüď¶ Standard Shipping ships within 1-3 Business Days
  • ūüĆé International Shipping Experts, Fully Tracked
  • ‚á® Need a gear recommendation or a customized package?
  • Contact our support team for all your questions!

    Contact support for recommendations or customization questions

    We answer requests Mon-Fri 10am-6pm EST

  • Lab Overview
  • Review & Q+A
  • Tagged

Lab Overview

ūüďĆLAB POINTS

  • audiophile phono preamp w/ optional USB output
  • compatible w/ both moving magnet + moving coil (MM/MC) cartridges
  • selectable cartridge input impedance + capacitance to fine tune your listening experience per cartridge
  • RCA, USB + optical outputs
  • dual mono, ultra low noise circuitry for excellent channel separation
  • precise RIAA equalization
  • gold plated input + output RCA sockets
  • durable aluminum metal sandwich construction¬†protects from vibrations and electromagnetic interference
  • easy access front-side controls
  • walnut wood side panels

"Phono Box DS2 USB is a sophisticated phono stage based on a high-end passive/active ultra-linear phono equalization. MM and MC capability as well as ‚Äėon-the-fly‚Äô impedance adjustment and multiple capacitance settings make this a feature-rich, sound-first design. The two phono inputs and input selector allow enthusiasts to toggle between two turntable/cartridge combos with the push of a button. For the USB model, a low-noise, jitter-free A/D converter is used to convert the analog signal to a high-resolution digital format (PCM up to 192kHz or DSD 128). Via the USB output, it‚Äôs easier than ever to record your vinyl to digital. There is also an analog line-in to record other analog sources. Phono Box DS2 USB is housed in a chassis made of 2-layer metal for a simple, sleek look that shields the circuitry from the influence of mechanical or electromagnetic interference." - Pro-Ject

ūüĒéTECH SPECS

  • cartridge compatibility: MM or MC
  • input: 1¬†pair RCA
  • output: 1 pair RCA
  • input impedance: 10, 20, 50, 100, 200ohms, 1000 ohms and 47kohms A
  • input capacitance: 100pF, 220pF and 320pF */47kohms B
  • output voltage:¬†500mV @ 1kHz (at 5mV input voltage @ 1kHz)
  • gain MM/MC: 40 / 45 / 50 / 60 / 65 dB
  • subsonic filter:¬† at 20Hz with 12dB/octave
  • phono inputs:¬†2 pairs RCA/phono sockets
  • line input:¬†1 pair RCA/phono sockets
  • line output: 1 pair RCA/phono sockets
  • digital outputs: 1x USB B-type,¬†1x S/PDIF optical
  • RIAA curve accuracy: 20Hz ‚Äď 20kHz / max. 0,3dB
  • power supply: 18V/500mA DC
  • power consumption:¬†100 mA DC, < 1 Watt standby
  • dimensions: 8.9 x¬†8.11 x 2.8" / 226 x¬†206 x¬†71 mm
  • weight: 2.95 lbs / 1.34 kg



UPC: 9120071652968
