LAB POINTS

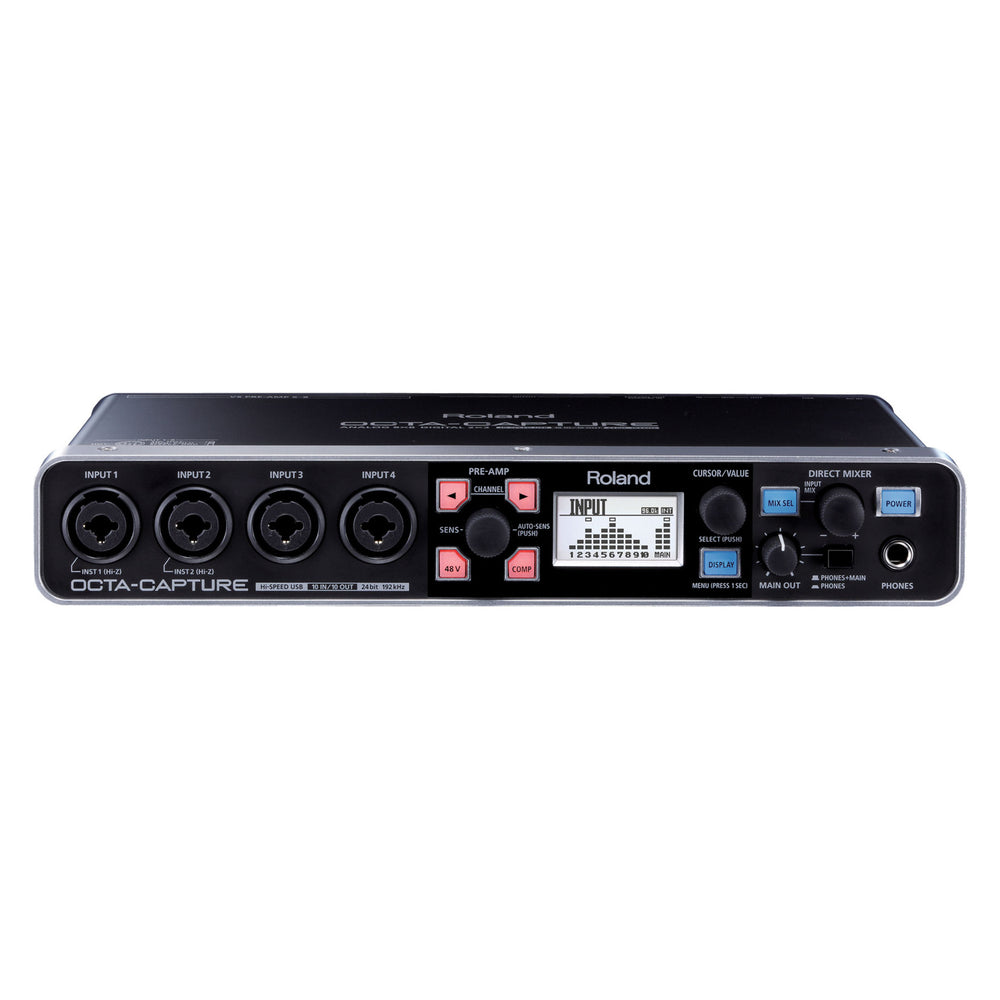

• excellent 24-bit/192 kHz audio quality
• 8 x premium grade VS preamps
• AUTO-SENS function intelligently sets optimal input levels for all preamps
• extremely stable low-latency VS STREAMING driver
• 4 x independent software-controlled Direct Mixers for creating custom monitor mixes
• 10 x inputs / 10 x outputs
• constructed of premium components
• compatible w/ all major DAW platforms on Mac or PC
• rackmount ears included

“Combining ten inputs, ten outputs, and eight VS PREAMPS with transparent 24-bit/192 kHz audio quality, the Roland OCTA-CAPTURE sets a new standard for portable USB 2.0 audio interfaces. High-level audio production comes easy with this fusion of premium components, Roland-quality engineering, and proprietary preamp and streaming technology... Brimming with quality and performance seldom seen in its price range, OCTA-CAPTURE is the next-generation audio interface” - Roland

TECH SPECS

• signal processing: 24 bit AD/DA Conversion
• sampling frequency: 44.1/48/96/192 kHz | digital I/O: 44.1/48/96 kHz

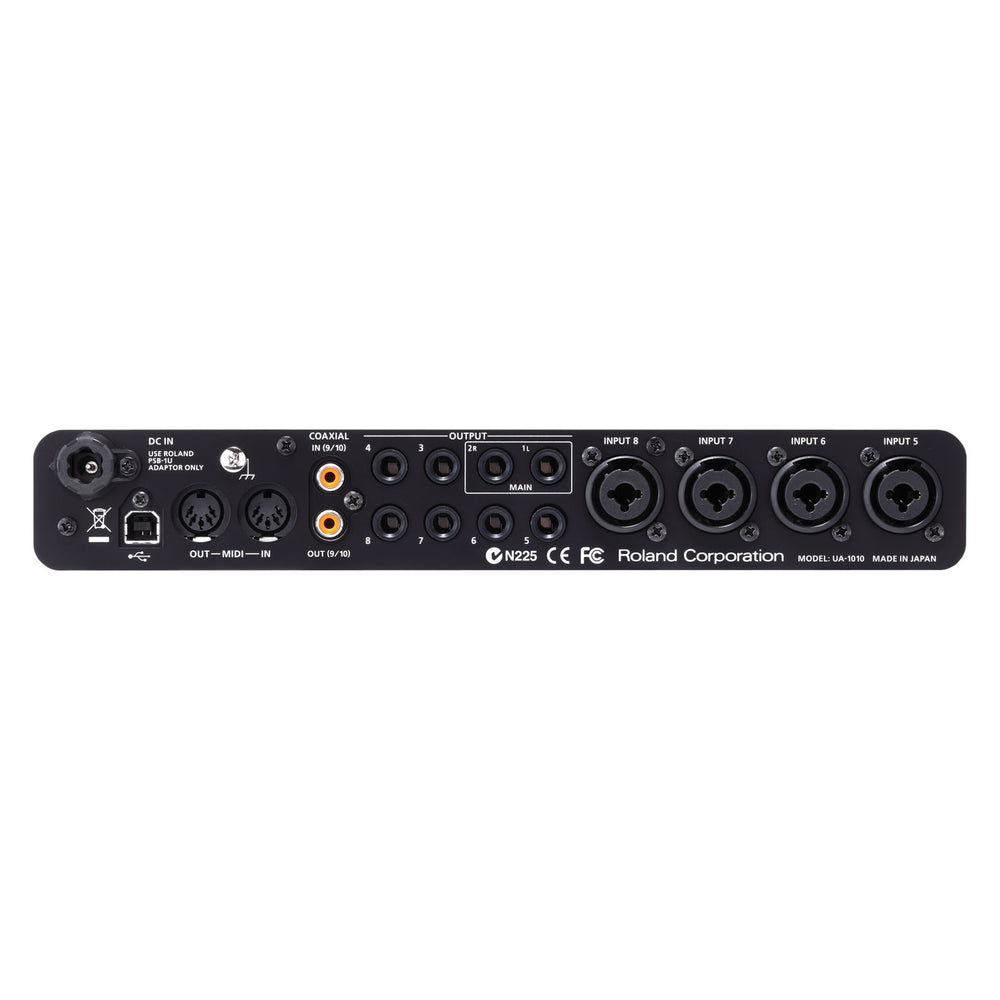

• input: jacks 1-8: combo XLR type / 1/4 inch TRS phone type, jacks 9-10: Coax type
• output: jacks 1-8: combo XLR type / 1/4 inch TRS phone type, jacks 9-10: Coax type
• MIDI I/O
• USB: Type B
• headphone jack
• frequency response: 20 Hz - 22 kHz (+0/-2 dB)
• power supply: DC 9 V (AC adaptor)
• display: 128 x 64 dots Graphic LCD (backlit LCD)
• dimensions: 11 3/16” x 6 1/4” x 2” / 284 x 158 x 50mm
• weight: 2 lbs 15 oz / 1.3 kg

COMES WITH

• USB cable
• AC Adapter
• rackmount ears
