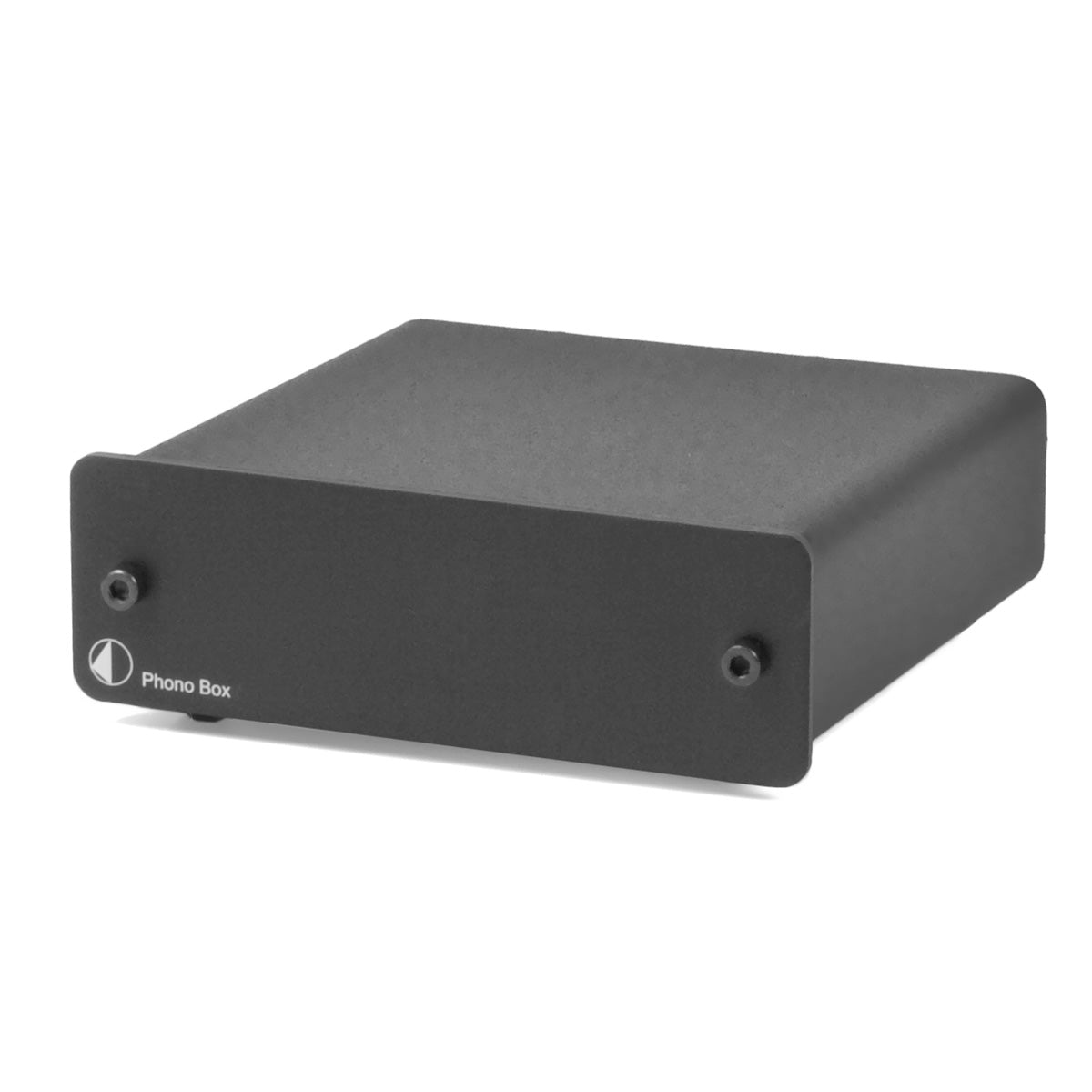

Phono Box DC Phono Pre-Amp - Black

SKU: eq-952-ttlsf
staple audiophile preamp
Regular price $149.00
Unit price
per
4.8 (5)

Need More Help, Contact Our Experts!

  • LAB POINTS

    • audiophile-grade phono preamp

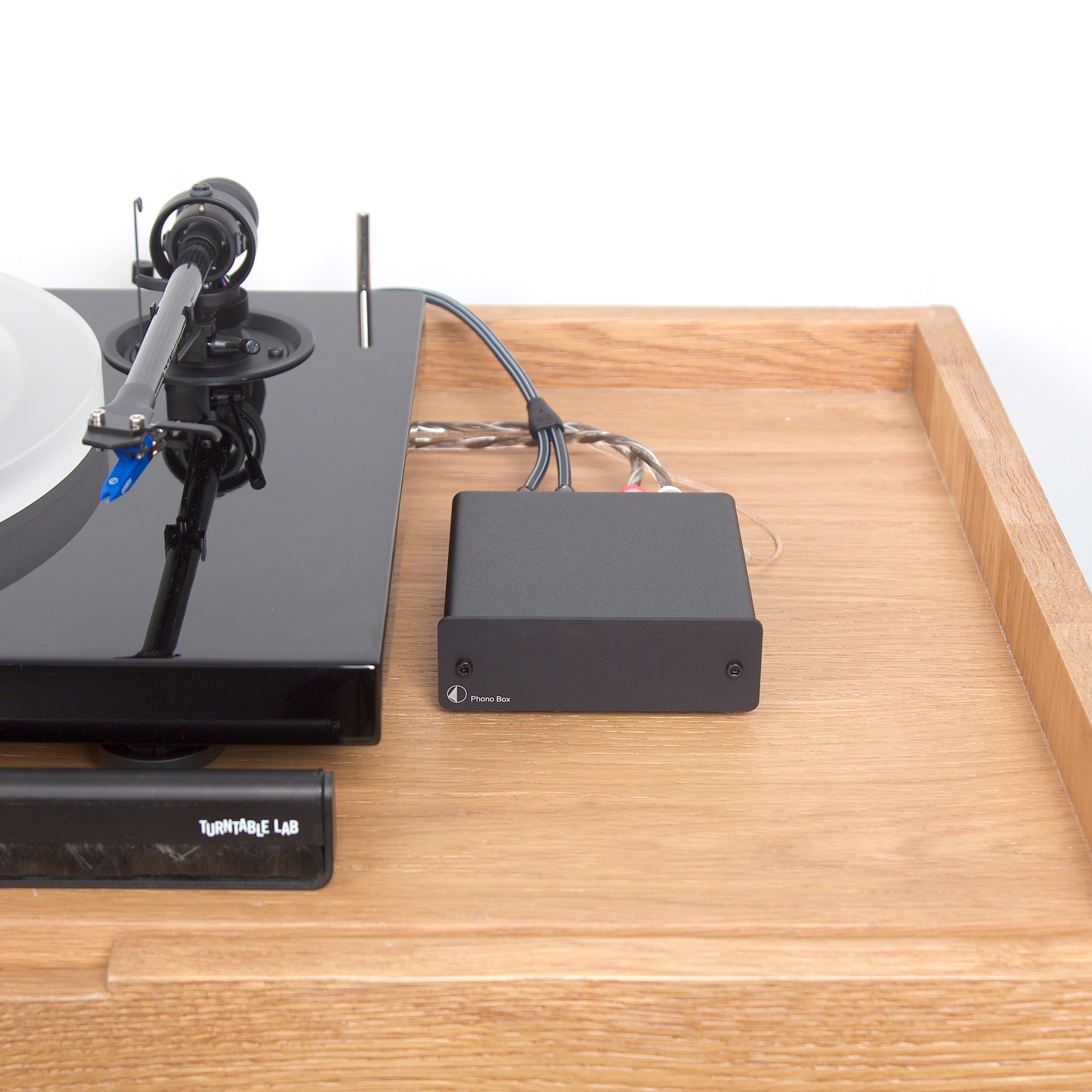

    • allows you to plug a turntable directly into a stereo system, amplifier, computer, or any other device that takes line level input

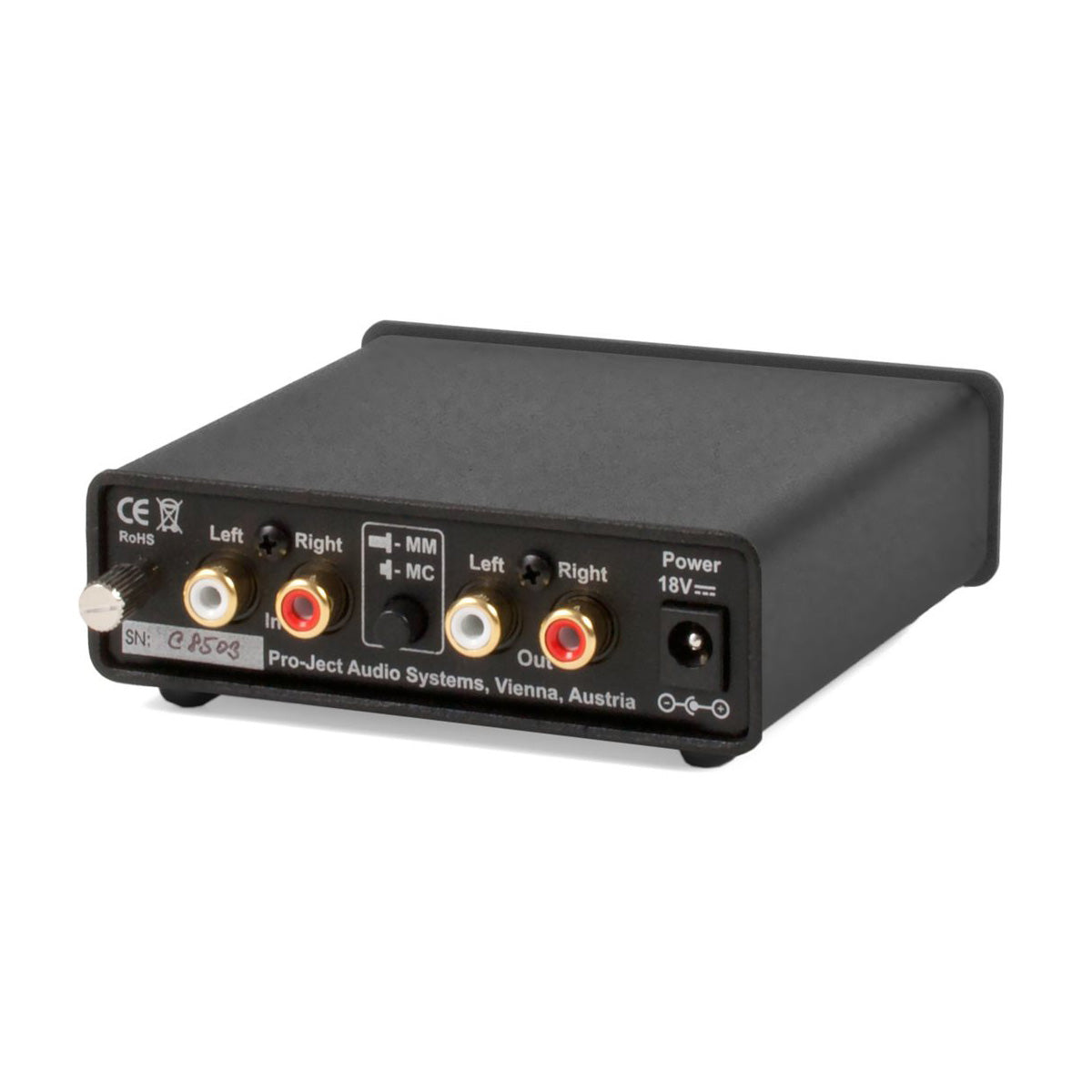

    • gold plated RCA inputs and outputs
    • high quality metal casing offers shielding from both vibration and electromagnetic interference
    • new "green" DC power supply (extremely low idle power usage)
    • switch for Moving Magnet (MM) and Moving Coil (MC) cartridges (most cartridges are MM)
    • low noise, low distortion
    • flat RIAA equalization curve with 60dB of gain (MC), 40 dB gain (MM)

    KEY FEATURES

    • Input Impedence MM: 47k ohms / 120pf
    • Input Impedence MC: 100 ohms / 120pF
    • Gain MM: 40dB
    • Output Voltage MM: 300mV / 1 kHz or 3mV
    • Gain MC: 60 dB
    • Output Voltage MC: 200 mV / 1 kHz or 0.3 mV
    • Noise MM: 86 dB (94 dB - A weighted)
    • Noise MC: 68 dB (75 dB - A weighted)
    • THD: MM 0.01% / MC 0.05%
    • Max. Output: 9.5 V
    • RIAA EQ Curve Accuracy: 20 Hz - 20 kHz / max 0.5 dB
    • Power Consumption: 18 V / 80 mA DC
    • Power Supply: 18 V / 500 mA DC
    • Dimensions (WHD): 4.1 x 1.4 x 4.1 in., 103 x 36 x 103 mm
    • Weight: 1.3 lbs., 570 g

    COMES WITH

    • power supply
    upc: 9120035827210
