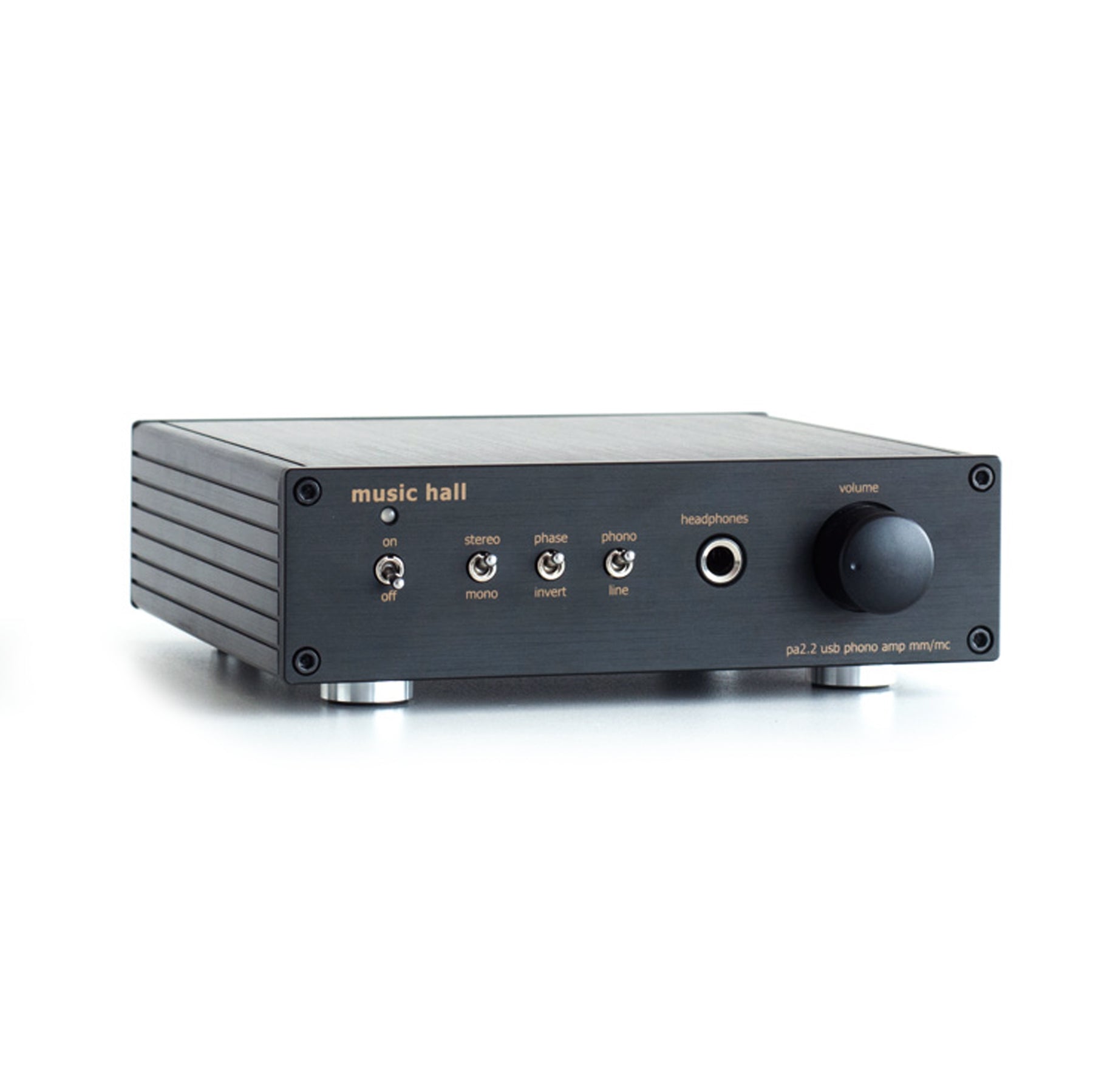

PA2.2 Phono Preamp / Headphone Amp / DAC

SKU eq-1482

ultra-quiet operation, MM+MC compatible, USB output for digitizing vinyl
Write a review
| Ask a question
sale $449.00
TTL Rewards icon Earn up to 4490 Reward Points with this purchase! Read more
  • Get more info on our FREE SHIPPING terms
  • 📦 Standard Shipping ships within 1-3 Business Days
  • 🌎 International Shipping Experts, Fully Tracked
  • ⇨ Need a gear recommendation or a customized package?
  • Contact our support team for all your questions!

    Contact support for recommendations or customization questions

    We answer requests Mon-Fri 10am-6pm EST

  • Lab Overview
  • Review & Q+A
  • Tagged

Lab Overview

📌LAB POINTS

  • ultra-quiet phono preamp, high-grade headphone amp + high resolution 2 input preamp (phono+line level) in one
  • MM (Moving Magnet) or high output MC (Moving Coil) cartridge compatible w/ adjustable MC gain stage
  • built-in 24bit/96kHz analog to digital converter (wolfson WM8786 ADC)
  • USB digital output, record vinyl or line level source to computer
  • stereo or mono compatiblity, fixed or variable line output capability
  • phase/invert switch for perfect audio phase
  • smooth Alps "blue velvet" rotary volume control

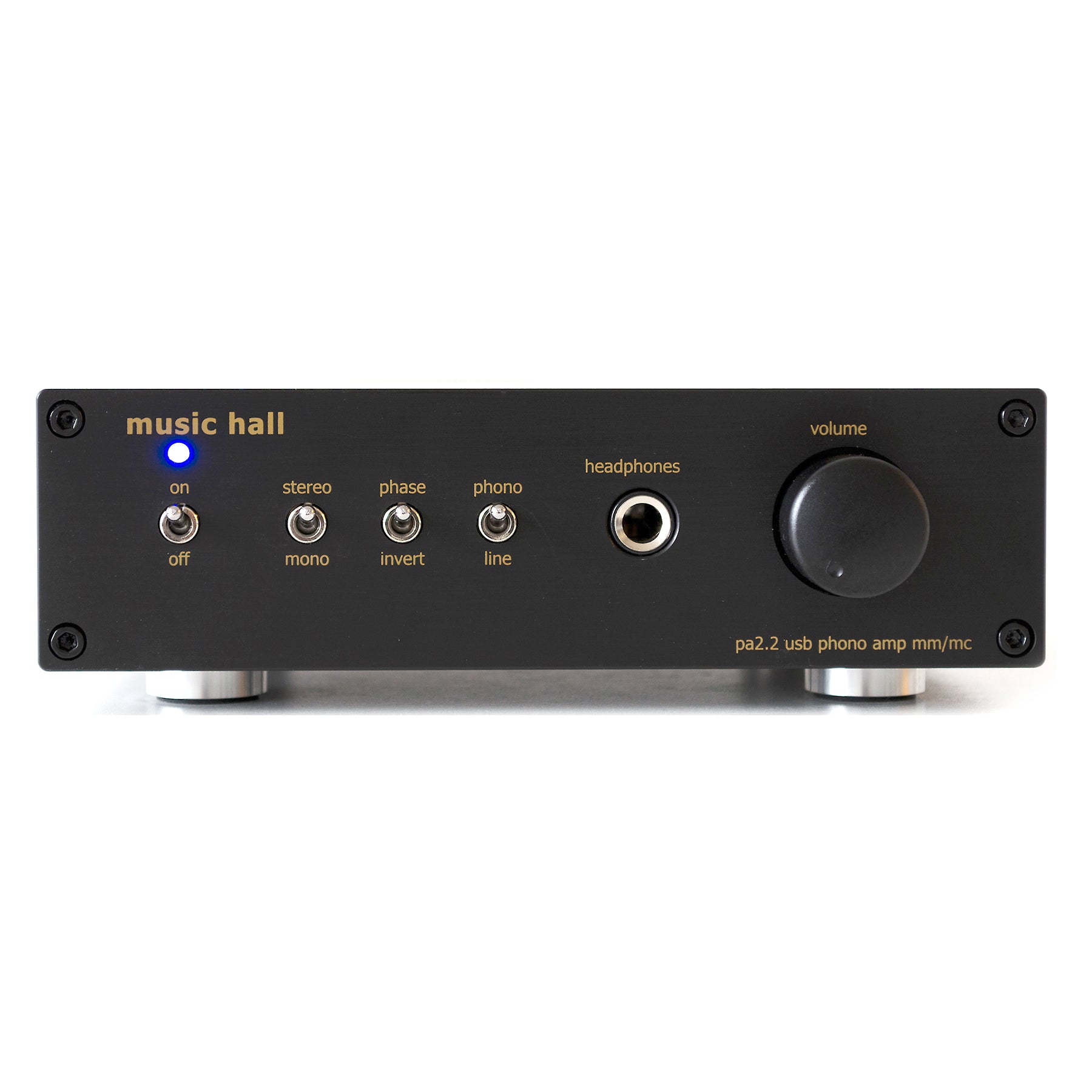

  • front panel headphone output (1/4")

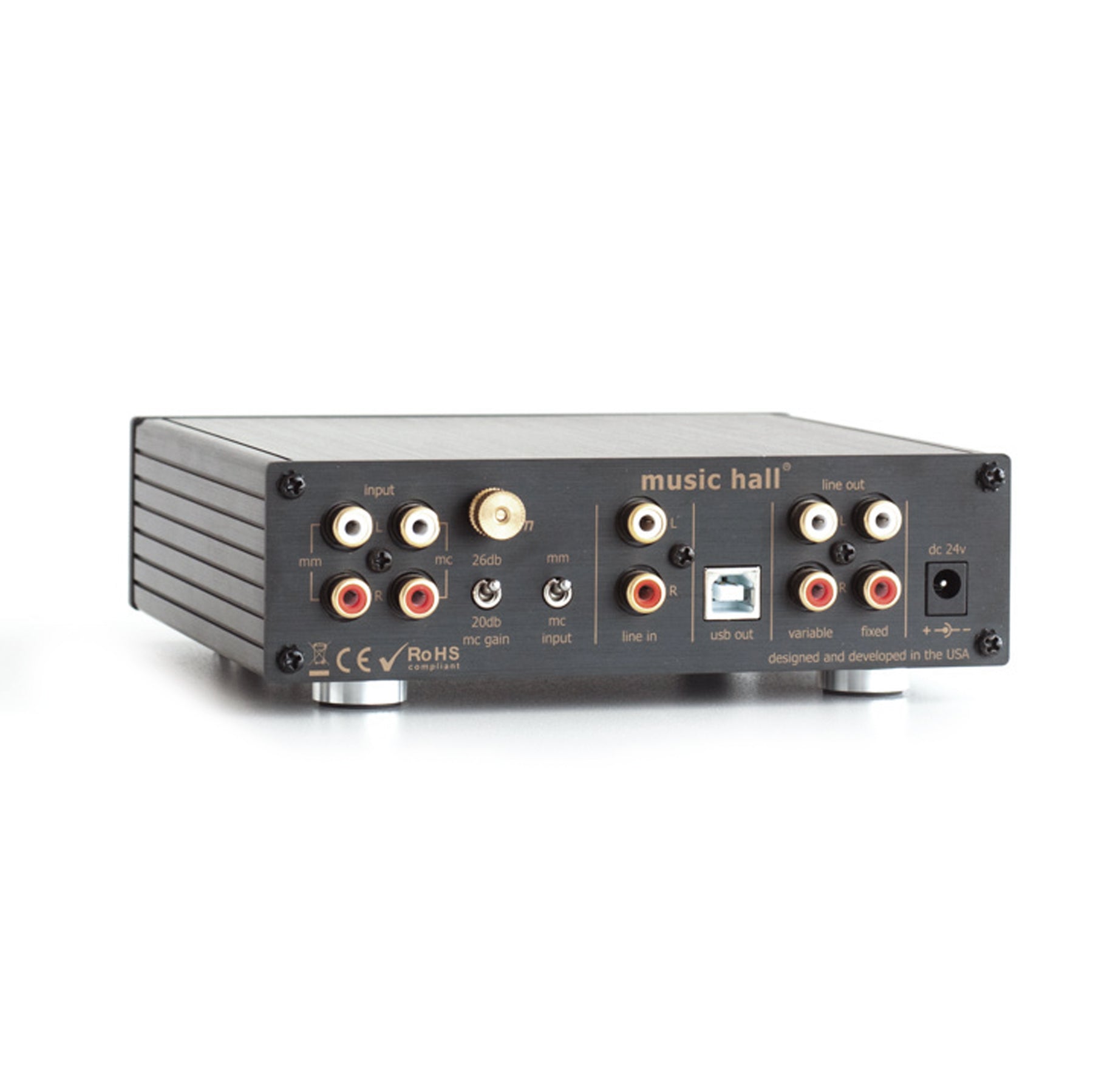

  • gold-plated RCA inputs and outputs, and grounding connection
  • metal casing w/ vibration damping feet

"The Swiss Army Knife of phono amps - it's an analog to digital converter, headphone amp, pre-amp and phono amp - all in one box." - Music Hall

🔑KEY FEATURES

  • A/D converter: Wolfson WM8786
  • USB receiver: Tenor TE7022 24-bit / 96 kHz
  • input: RCA (MM/MC/Line)
  • output: RCA (Line Variable/Fixed) / USB / 1/4" stereo headphone
  • gain: MM at 1 kHz: 39 dB / MC at 1 kHz: 59 dB (20 dB gain selected) / 65 dB (26 dB gain selected)
  • input sensitivity: MM for 316 mV Output: 3.3 mV / MC for 316 mV Output: 0.4 mV (20 dB gain selected) / 0.2 mV (26 dB gain selected)
  • signal to noise ratio: MM Unweighted (with Cartridge Connected): 70 dB /
    MC Unweighted (with Cartridge Connected): 75 dB (20 dB gain) / 70 dB (26 dB gain)
  • RIAA curve accuracy: ±0.3 dB
  • THD: MM (10 mV In): > 0.01% / MC (1 mV In and 20 dB Gain Selected): > 0.05% / MC (1 mV In and 26 dB Gain Selected): > 0.05% /  Analog Line-Level Input: > 0.01% / Headphone Stage: > 0.02%
  • dimensions: 6.3 x 2.0 x 6.7" / 15.9 x 5.1 x 17.1 cm
  • weight: 2 lbs / 900 g

📦COMES WITH

  • power supply
UPC: 091037971593
