NAD

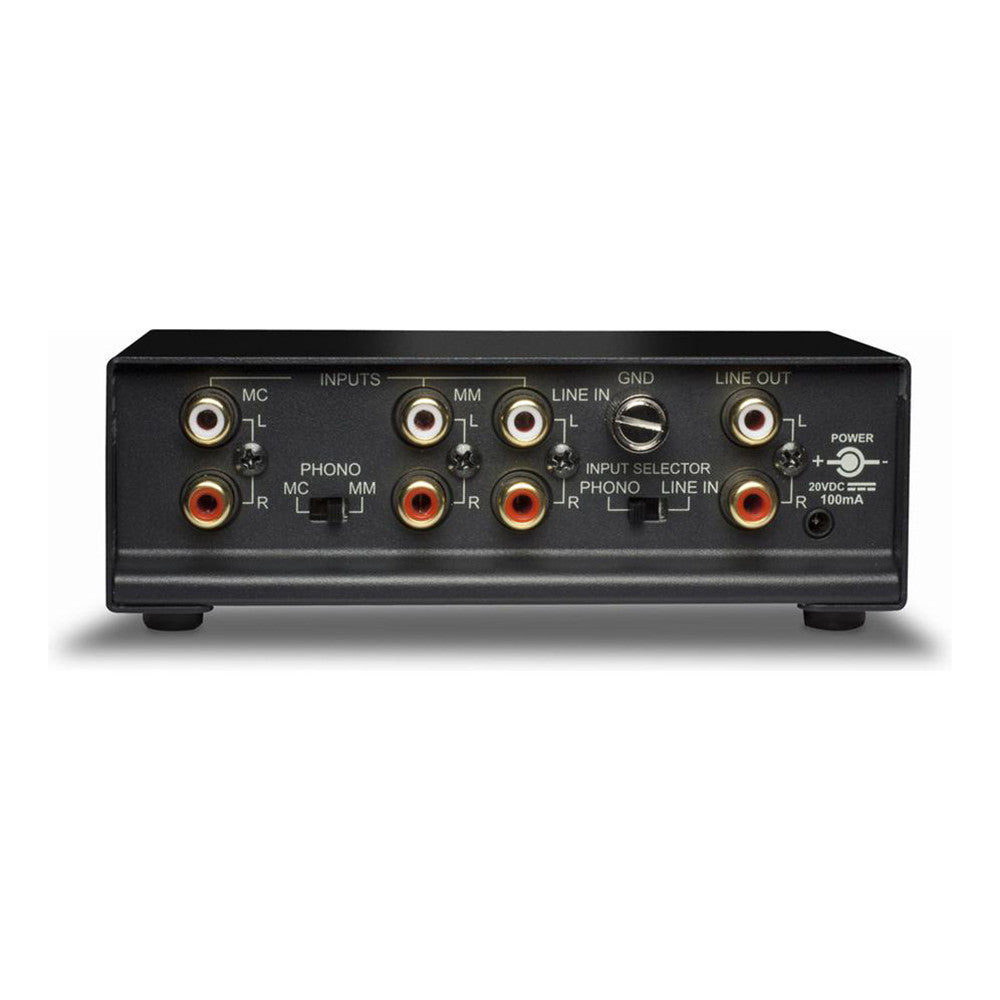

PP4 Digital USB Phono Preamp

SKU eq-1214

low noise, USB connectivity, MM+MC+line-in modes
Write a review
| Ask a question
sale $279.00
TTL Rewards icon Earn up to 2790 Reward Points with this purchase! Read more
  • Get more info on our FREE SHIPPING terms
  • 📦 Standard Shipping ships within 1-3 Business Days
  • 🌎 International Shipping Experts, Fully Tracked
  • ⇨ Need a gear recommendation or a customized package?
  • Contact our support team for all your questions!

    Contact support for recommendations or customization questions

    We answer requests Mon-Fri 10am-6pm EST

  • Lab Overview
  • Review & Q+A
  • Tagged

Lab Overview

LAB POINTS

  • low noise phono preamp w/ switchable MM (moving magnet ) & MC (moving coil) cartridge modes + USB ouput
  • connect your turntable to almost any amplifier, converts phono to line level
  • digitize your vinyl collection w/ included VinylStudio Lite software
  • line input to allow for the digitizing of cassettes or other formats
  • recording level control on front panel
  • gold plated input sockets
  • high quality components
  • auto power down function turns unit off when not in use
  • low consumption "green" power supply
  • LED power indicator

"Our PP 4 Digital Phono/USB Preamplifier enables you to digitise your treasured vinyl collections to a PC or Mac. It features inputs for both MM (moving magnet) and low noise MC (moving coil) types for a wide variety of phono cartridges, and there is a line input to allow for the transfer of cassette tapes. The PP 4 also includes VinylStudio Lite Software for ripping LPs and burning audio CDs. The PP 4 Phono-to-USB Preamp offers a complete hardware and software solution with exceptional flexibility to record from LP or tape." - NAD

TECH SPECS

  • switchable MC or MM modes
  • digital output: 16 bit linear PCM / 48kHz
  • input impedance (R and C): MC - 100Ω + 180pF / MM - 47kΩ + 200pF
  • gain at 1kHz: MC - 58dB / MM - 35dB
  • input sensitivity (ref. 200mV ouput): MC - 0.3mV / MM - 2.5mV
  • signal to noise (A weighted, with cartridge connected): MC- 78dB / MM - 80dB
  • rated distortion (THD 20Hz – 20kHz): >0.03%
  • line in: input impedance - 47k + 180pF / rated distortion - <0.008% / max input level - 5.3V
  • dimensions: 5.3" x 1.9" x 2.8" / 135 x 49 x 72mm

COMES WITH

  • PP4 Vinylstudio Lite software
  • USB cable
  • external power supply
    UPC: 5703120210162
