📌LAB POINTS
- desktop DAC and headphone amplifier w/ variety of inputs + outputs
- 1400mW large power output
- 3 gain levels + 3 volume curves provide a customized listening experience for headphones of various impedances
- USB DAC mode for use w/ computers + video game consoles
- control via single multi-function knob

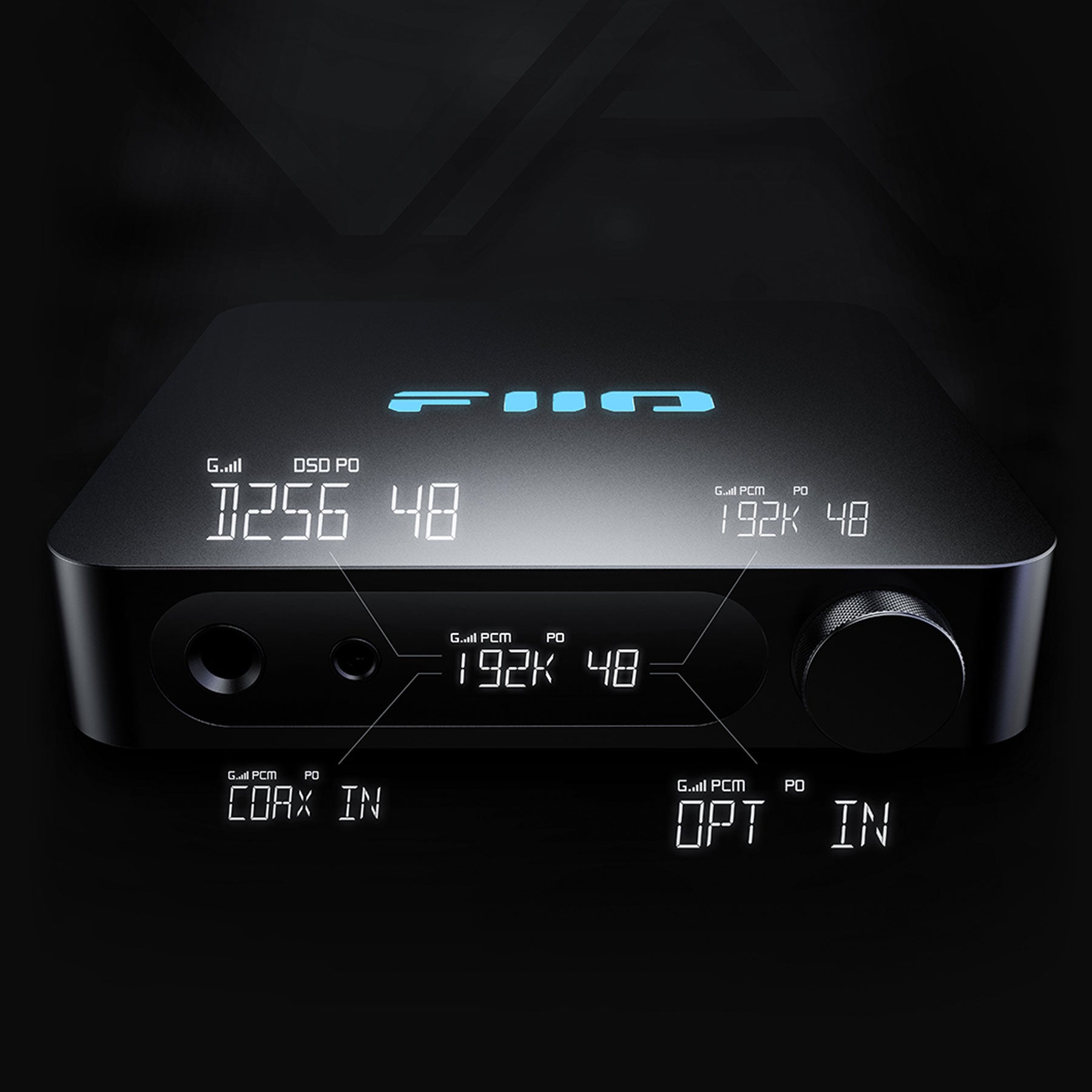

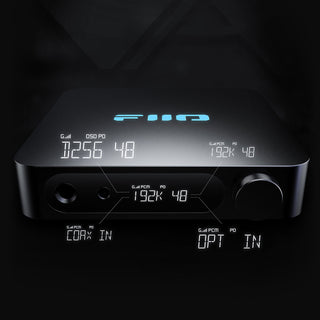

- high-contrast LCD display
- RGB illuminated logo display w/ adjustable brightness, color + light patterns
- slim + sturdy aluminum alloy housing w/ silicone anti-slip bottom pad
🔎TECH SPECS

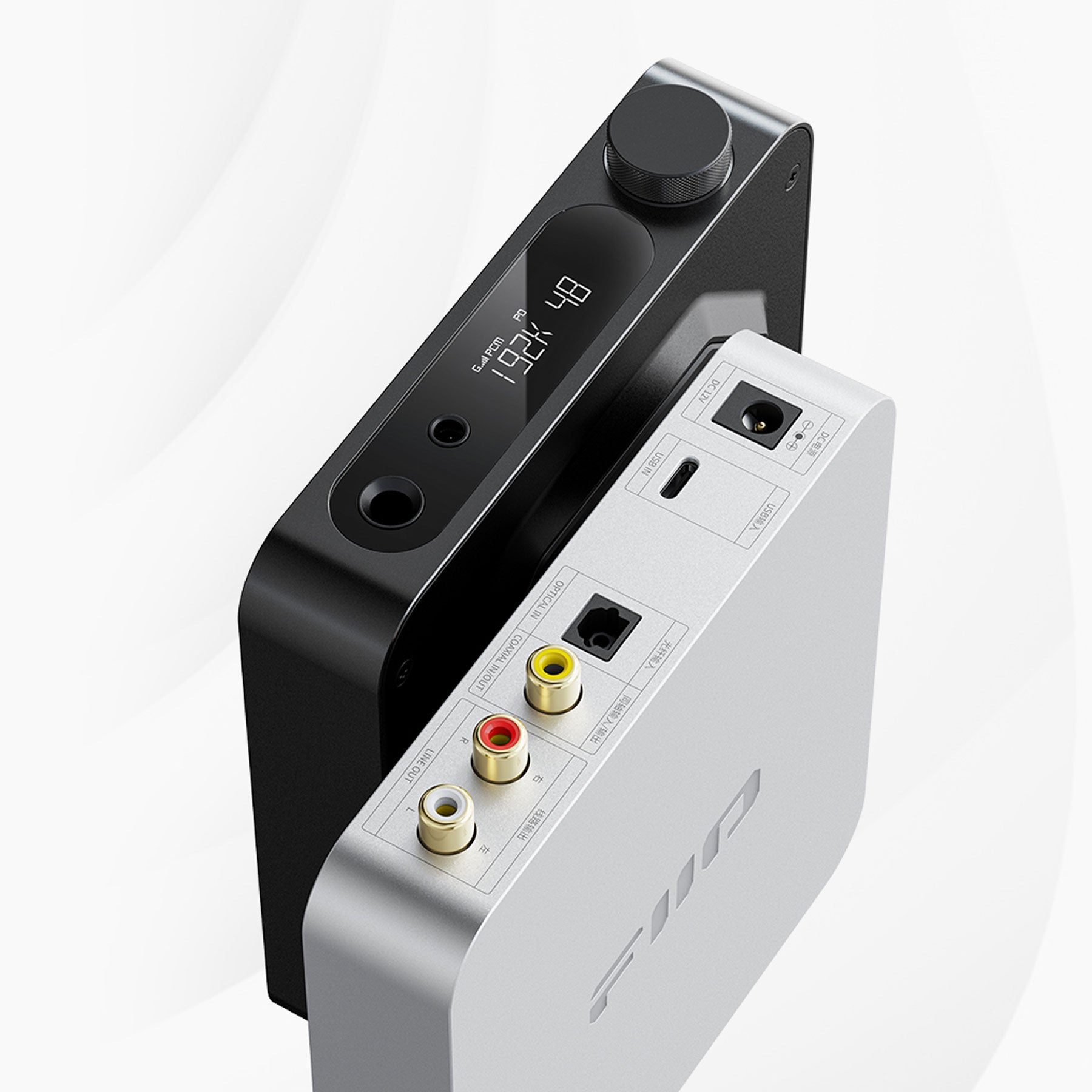

- outputs: 3.5mm, 4.4mm, RCA line out, coaxial
- inputs: USB-C, optical, coaxial
- power source: DC12V 2A external adaptor
- main control chip: GD32F303RET6
- DAC: CS43198
- supported audio formats: 384kHz/32bit PCM, DSD256
- frequency response: 20Hz-50kHz
- charging port: USB-C
- dimensions: 5.79 x 5.2 x 1.27" / 147 x 133 x 32.3 mm
- weight: 0.9 lbs / 0.4kg

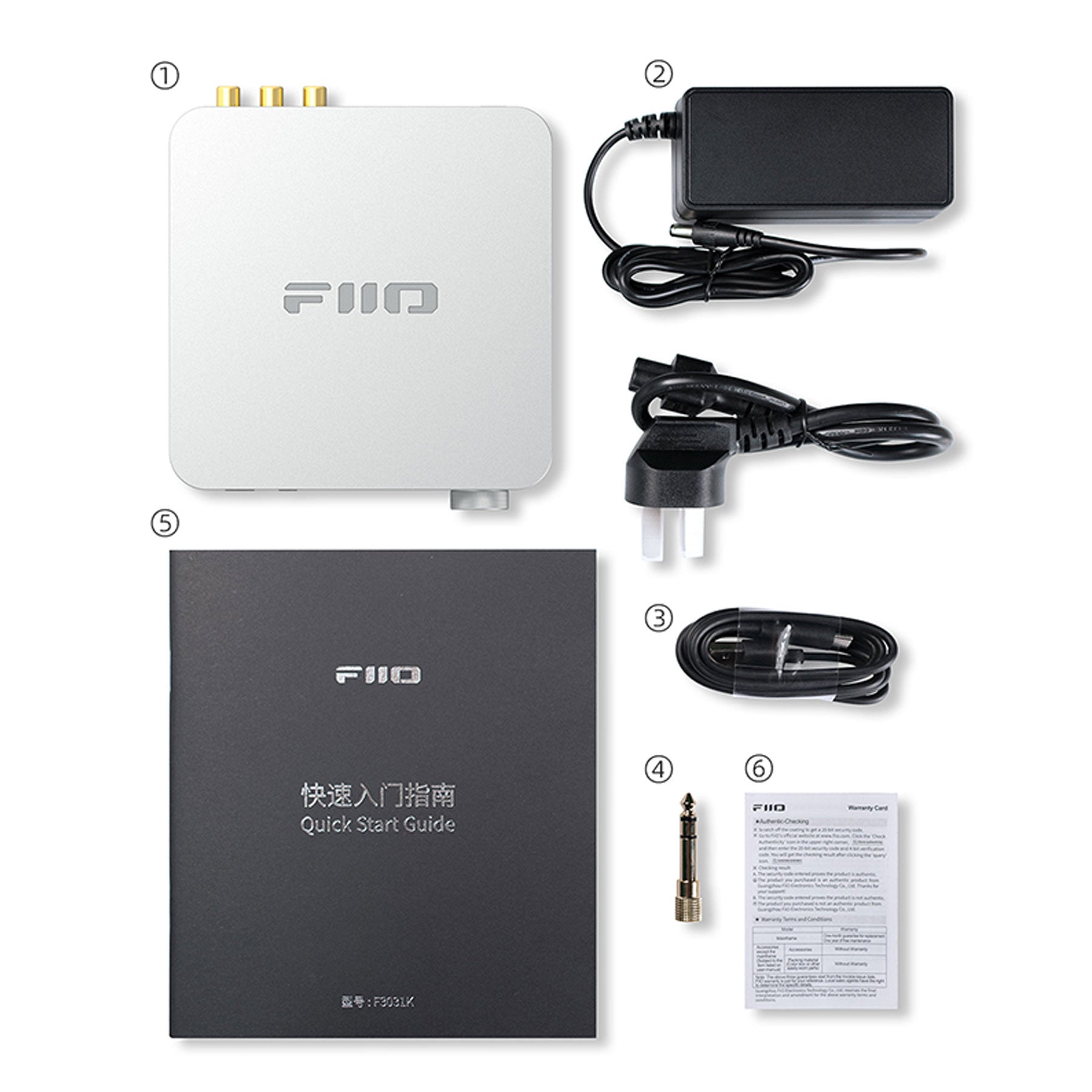

📦COMES WITH
- power adaptor
- USB-C to USB-A cable
- 6.35mm adaptor
- quick start guide
