📌LAB POINTS
- compact 100W streaming amplifier - connect passive speakers for full streaming capabilities with digital features such as multi-room setup + 10 band EQ
- Ultra is the flagship model of WiiM amplifiers

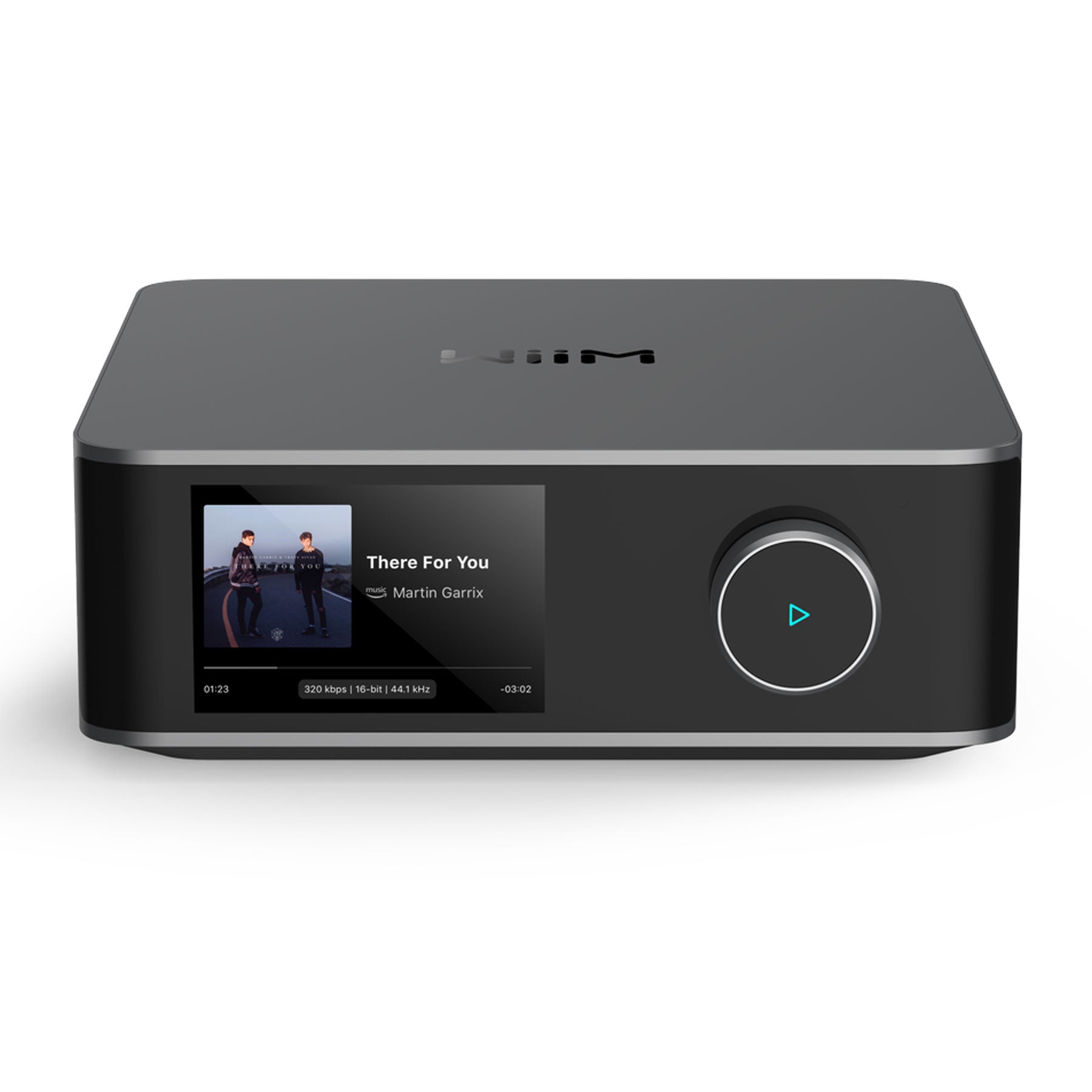

- 3.5" touchscreen display (album art, VU meters, settings)
- works with Google Cast, Spotify, Tidal and more (note: no Airplay)
- upgraded Sabre audiophile DAC (ESS ES9039 Q2M)
- inputs: RCA, HDMI ARC, optical, USB disk
- WiiM's streaming platform allows you to stream high-resolution music; create multi-room audio setups; customize your setup using WiiM Home App; and use voice commands (Alexa, Google Assistant)
"WiiM has become one of the top brands in the streaming component market with their ease of use, sound quality, and full-featured app. Simply connect your passive speakers to the WiiM Amp. Then with a couple steps in the WiiM app, you'll have a reliable, high-quality streaming setup with your favorite speakers." - TTL
🔑KEY FEATURES
- 100W / @8 ohms class D amplifier with dual TI TPA3255 circuits
- PFFB (Post-Filter Feedback) technology
- do
- stream up to 24-bit / 192 kHz
- DAC: ESS ES9039 Q2M
- ADC (analog to digital conversion): up to 192kHz / 24 bit audio
- Bluetooth 5.3 (2 way), Wi-Fi 6

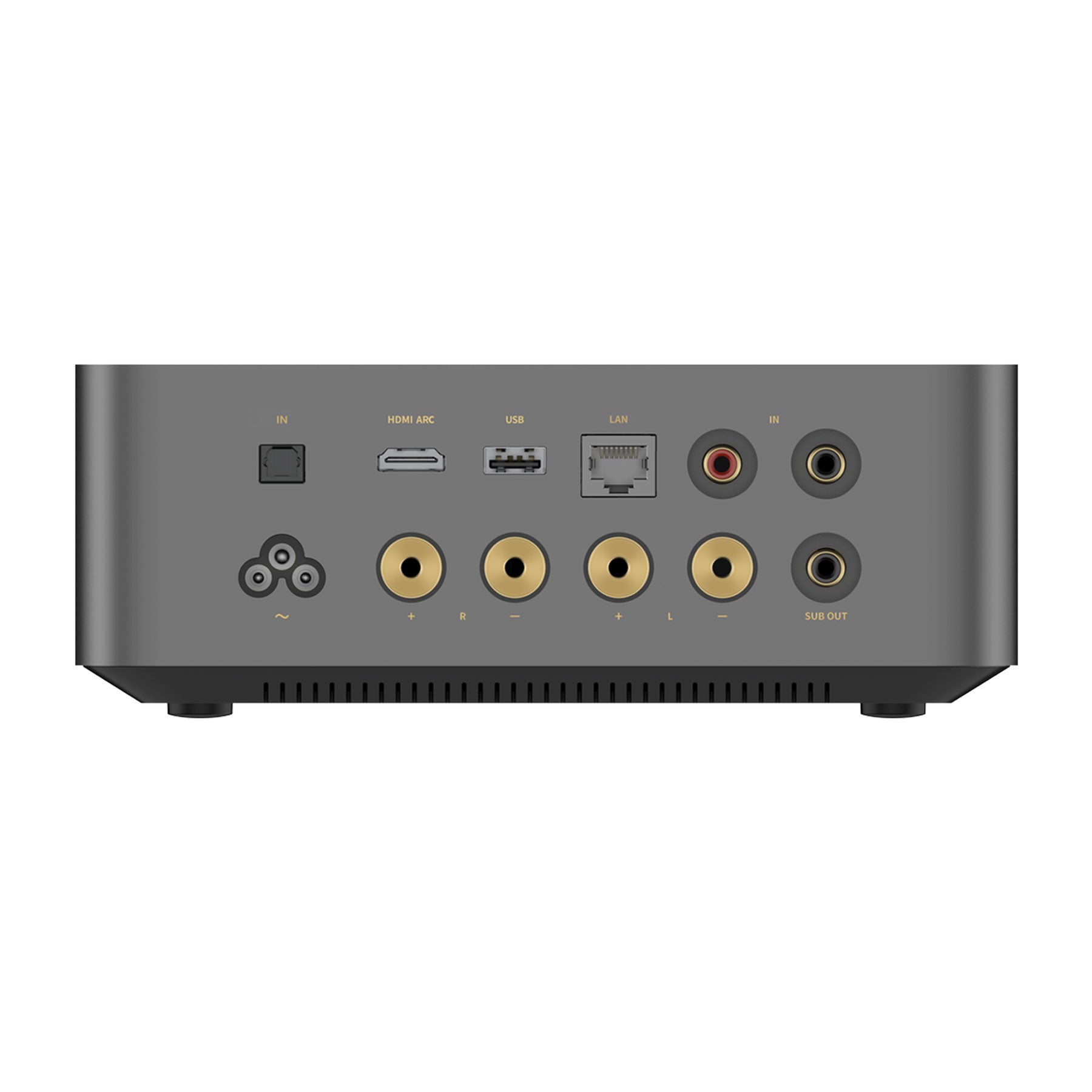

- inputs: HDMI ARC, RCA, optical, USB disk
- outputs: USB for audio + storage, subwoofer
- ethernet: yes
- 7.9" (w) x 8.3" (d) x 2.8" (h) / 200 x 211 x 72mm
- 3.1 lbs / 1.4kg
📦COMES WITH
- remote control with voice mic
- power cable
- RCA cable (1.5m)
- optical cable (1.5m)
- HDMI cable (1.5m)
WiiM AMP ULTRA vs. WiiM Amp
- Ultra adds a 3.5" touchscreen display
- Ultra has a more powerful amplifier (100W per channel vs. 60W)
- Ultra features dual TI TPA3255 circuits (vs. single)
- Ultra features Wi-Fi 6, Bluetooth 5.3 (better reliability, stability)
- Ultra features a higher-end ESS ES9039 Q2M DAC
- Ultra features better audio specs (SNR, THD+N)
- Ultra adds PFFB (Post-Filter Feedback) technology (less distortion)
- Ultra does not have Airplay / Siri
