📌 LAB POINTS

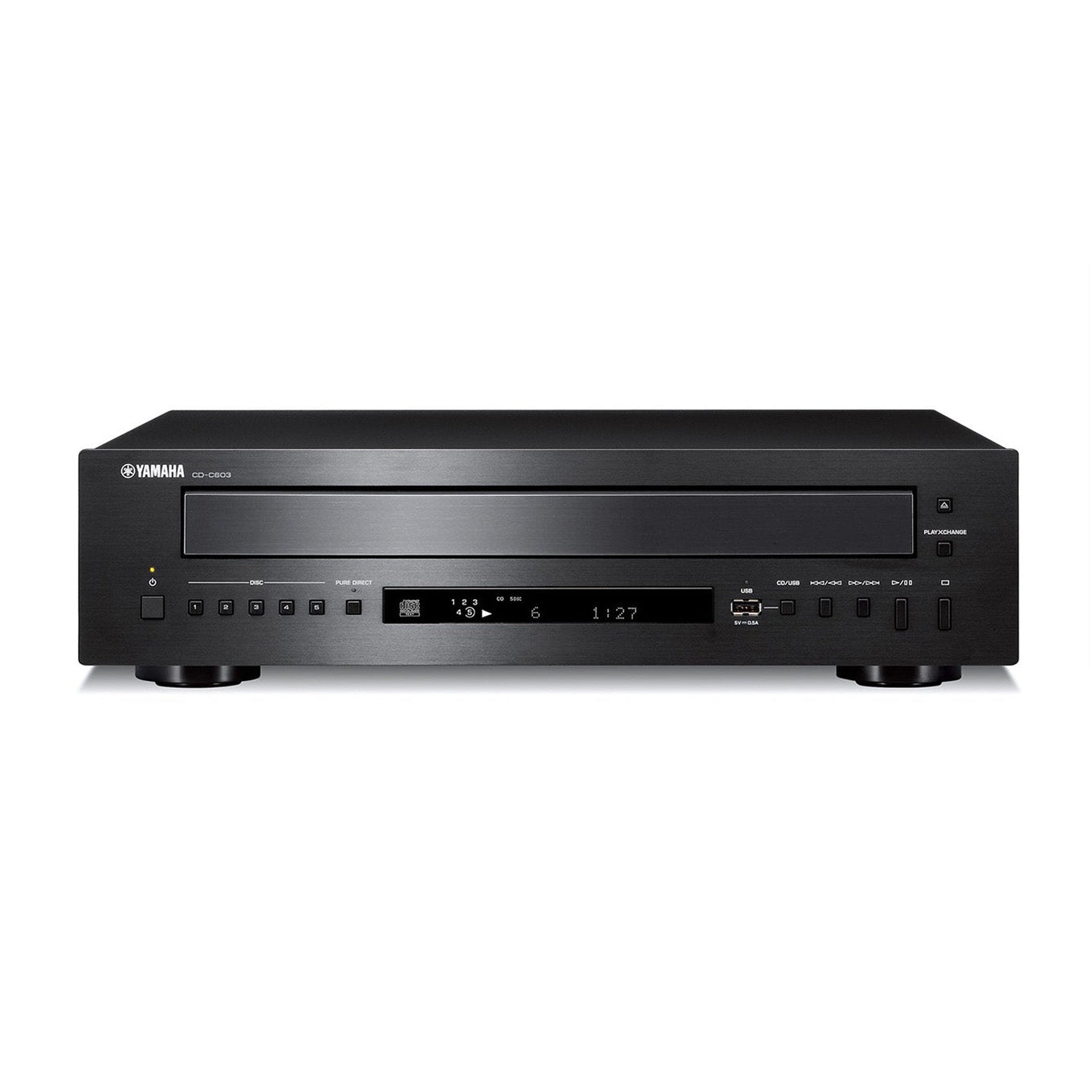

- 5-disc carousel tray CD changer with Yamaha’s high-quality audio circuit design
- supports uninterrupted playback with PlayXchange for swapping discs while one continues playing
- Pure Direct mode shortens signal path to minimize noise + provide uninterrupted sound
- 192 kHz / 24-bit Burr-Brown DAC ensures natural, detailed audio
- plays CD, CD-R/RW discs and USBs containing MP3 / WMA / AAC / WAV or FLAC files up to 96 kHz / 24 bits
- aluminum front panel

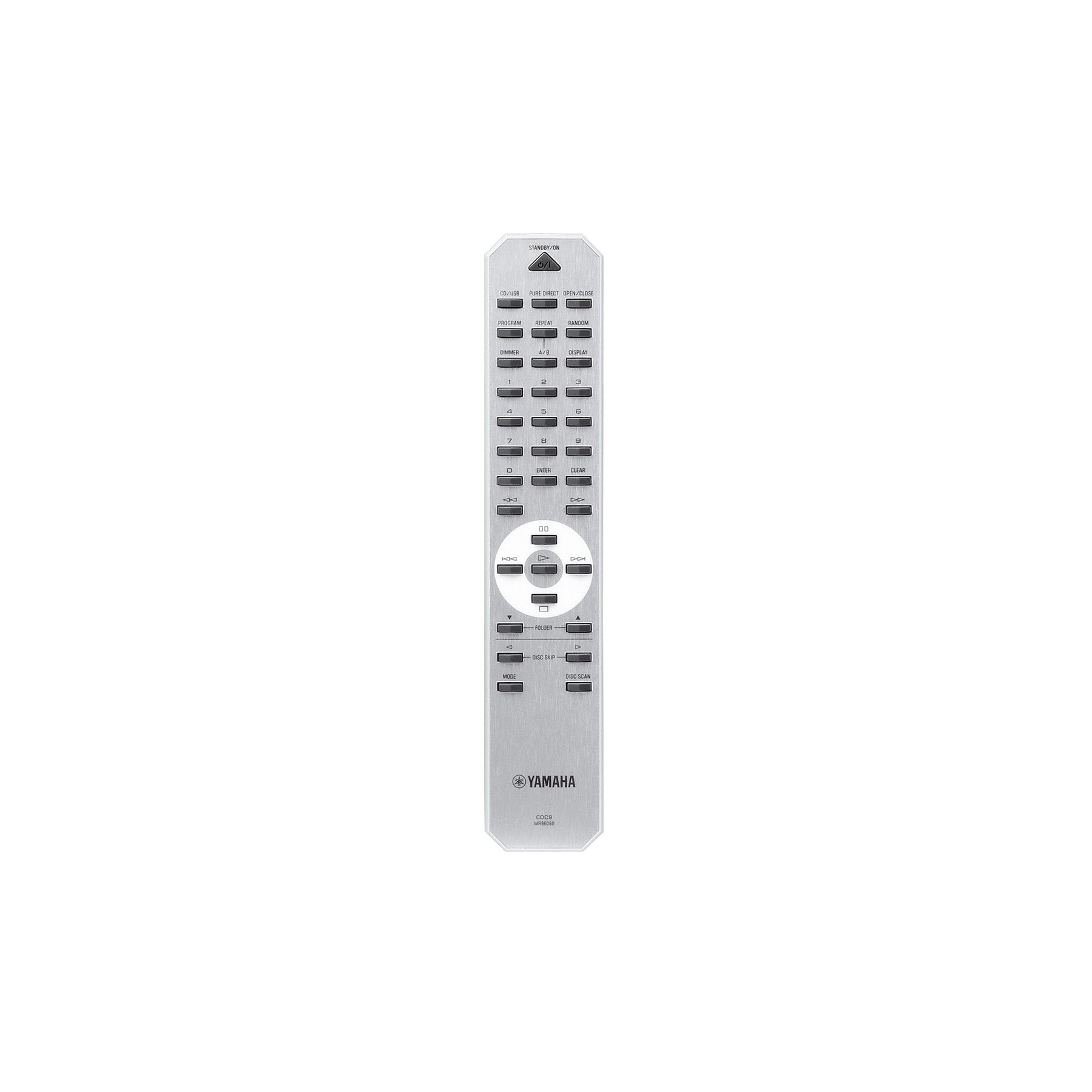

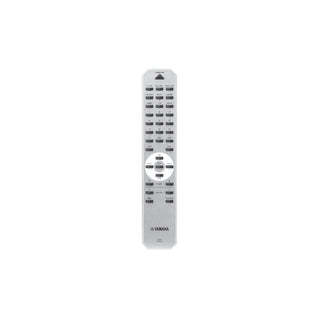

- includes remote control
"The CD-C603 offers Pure Direct, which is the same popular feature included in Yamaha amplifiers and receivers. By pressing the button on the front panel or on the remote control, it shuts down the digital audio output and turns off the display. This achieves the lowest possible noise interference, and the highest sound quality of the analog audio output." - Yamaha
🔑 KEY FEATURES
- DAC: Burr-Brown 192 kHz / 24-bit
- compatible formats: CD, CD-R/RW, MP3, WMA

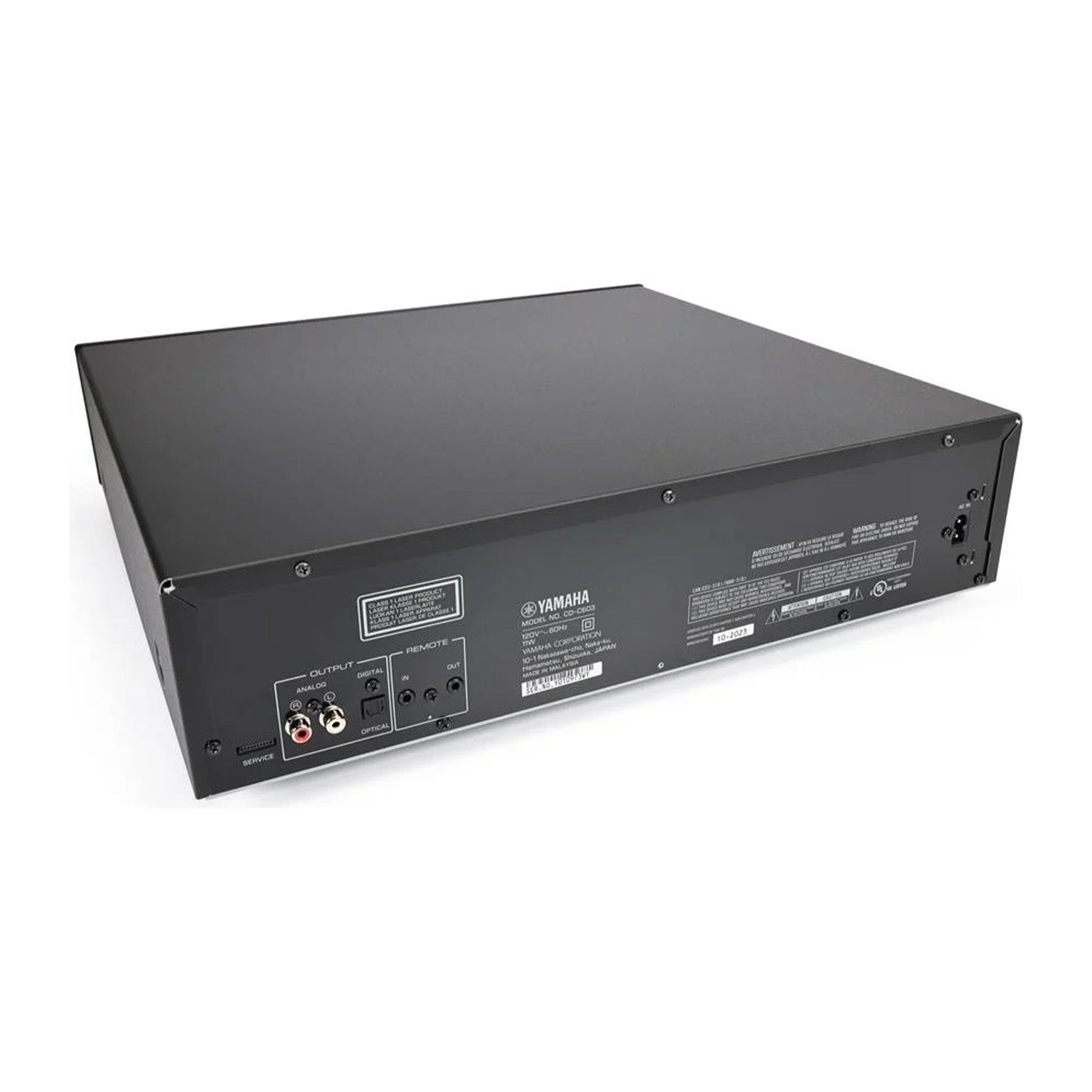

- outputs: RCA analog, optical
- frequency response: 2 Hz – 20 kHz (±0.5 dB)
- total harmonic distortion (THD): 0.003% (1 kHz)
- signal-to-noise ratio (SNR): 105 dB
- dynamic range: 96 dB
- dimensions (W × H × D): 17-1/8" × 4-5/8" × 16-3/8" / 435 × 116 × 405 mm
- weight: 15.4 lbs / 7.0 kg
📦 COMES WITH
- remote control
- RCA audio cable
