- compact wireless recording system
- digital 24-bit/48 kHz wireless operation for excellent sound quality + reliable performance
- operates in the 2.4 GHz range – completely free from TV interference
- ultra compact receiver size with multiple mounting options
- selectable balanced and unbalanced output jacks with level control for use with most cameras and recording devices
- automatic frequency selection for seamless, interference-free operation
- separate headphone port and volume control for local audio monitoring
- easy operation with instantaneous channel selection, sync and setup
- includes receiver, transmitter, and lavalier mic
"With its compact and portable design, the System 10 Camera-Mount high-fidelity digital wireless system is ideally positioned to capture media on the go. Perfect for video production, electronic news gathering and every mobile application in between, the receiver features multiple mounting options to accommodate a variety of cameras and recording devices." - Audio-Technica
- Operating Frequencies: 2.4 GHz ISM band
- Dynamic Range: >109 dB (A-weighted), typical
- Total Harmonic Distortion: <0.05% typical
- Operating Range: 30m (100') radius, 60m (200') diameter typical
- Operating Temperature Range: 0° C to +40° C (32° F to 104° F)
- Frequency Response: 20 Hz to 20 kHz
- Audio Sampling: 24 bits / 48 kHz
- Receiving System: Diversity (frequency/time/space)
- Maximum Output Level: 3.5 mm (1/8"), TRS balanced: +6 dBV Dual mono, unbalanced: 0 dBV
- Power Supply: 100-240V AC (50/60 Hz) to 5V DC 0.5A switched mode external USB-type external power supply
- Battery: Internal Battery: 3.7V rechargeable Li-ion battery, 12 hour battery life
- RF Power output: 10mW
- dimensions (receiver): 2.2” x 3.6” x 27.8”/ 56 x 91 x 28mm
- dimensions (transmitter): 2.7” x 4.2” x 0.9”/ 70 x 107 x 25mm
- weight (receiver): 3.7 oz. / 105 g.
- weight (transmitter): 3.5 oz. / 100 g.

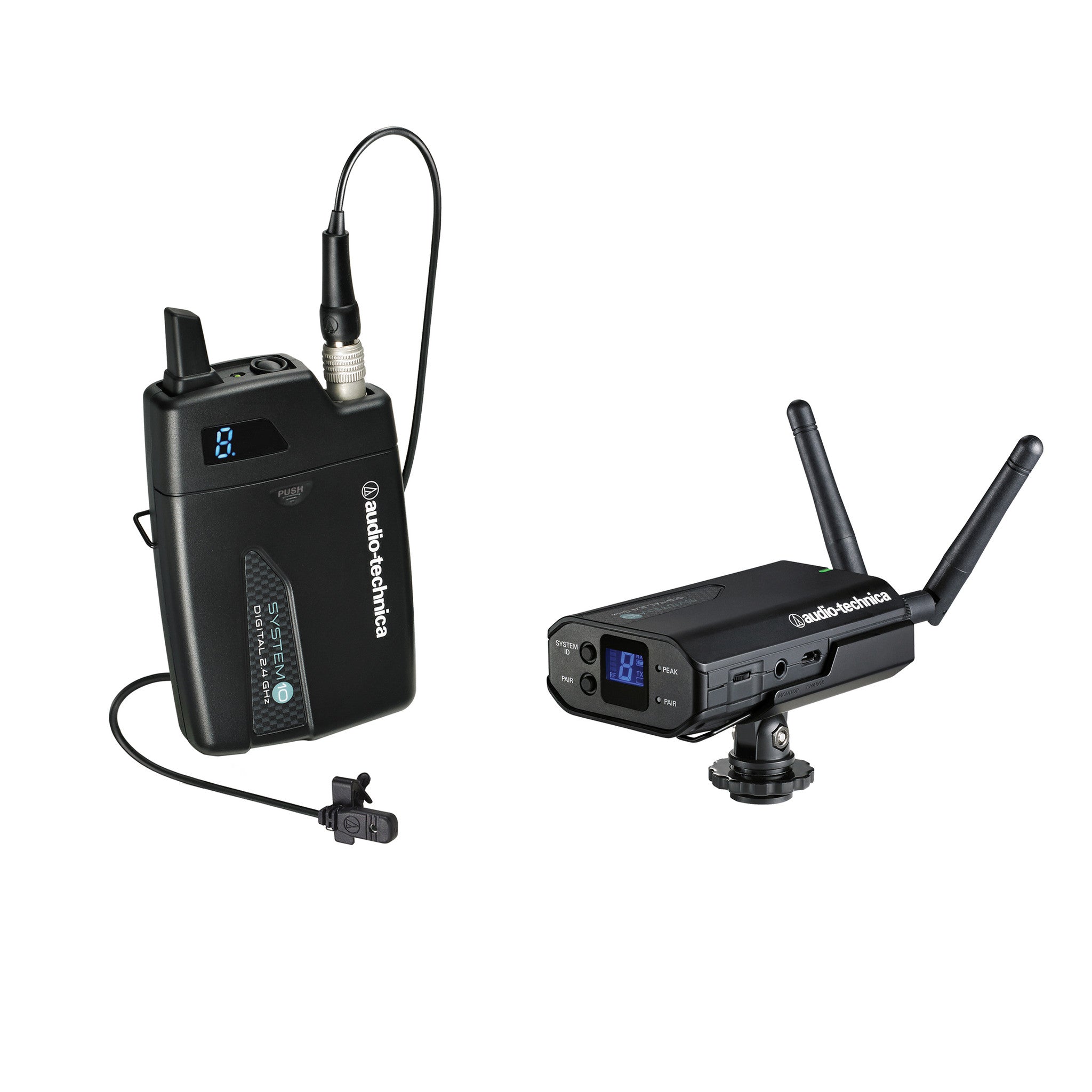

- ATW-R1700 receiver
- ATW-T1001 UniPak transmitter
- MT830cW omnidirectional lavalier mic
