EQ570 Four Band Audio Equalizer

SKU eq-1471

customizable EQ to improve + fine tune audio signal from any source
Write a review
| Ask a question
sale $119.00
TTL Rewards icon Earn up to 1190 Reward Points with this purchase! Read more
  • Get more info on our FREE SHIPPING terms
  • ūüď¶ Standard Shipping ships within 1-3 Business Days
  • ūüĆé International Shipping Experts, Fully Tracked
  • ‚á® Need a gear recommendation or a customized package?
  • Contact our support team for all your questions!

    Contact support for recommendations or customization questions

    We answer requests Mon-Fri 10am-6pm EST

  • Lab Overview
  • Review & Q+A
  • Tagged

Lab Overview

ūüďĆLAB POINTS

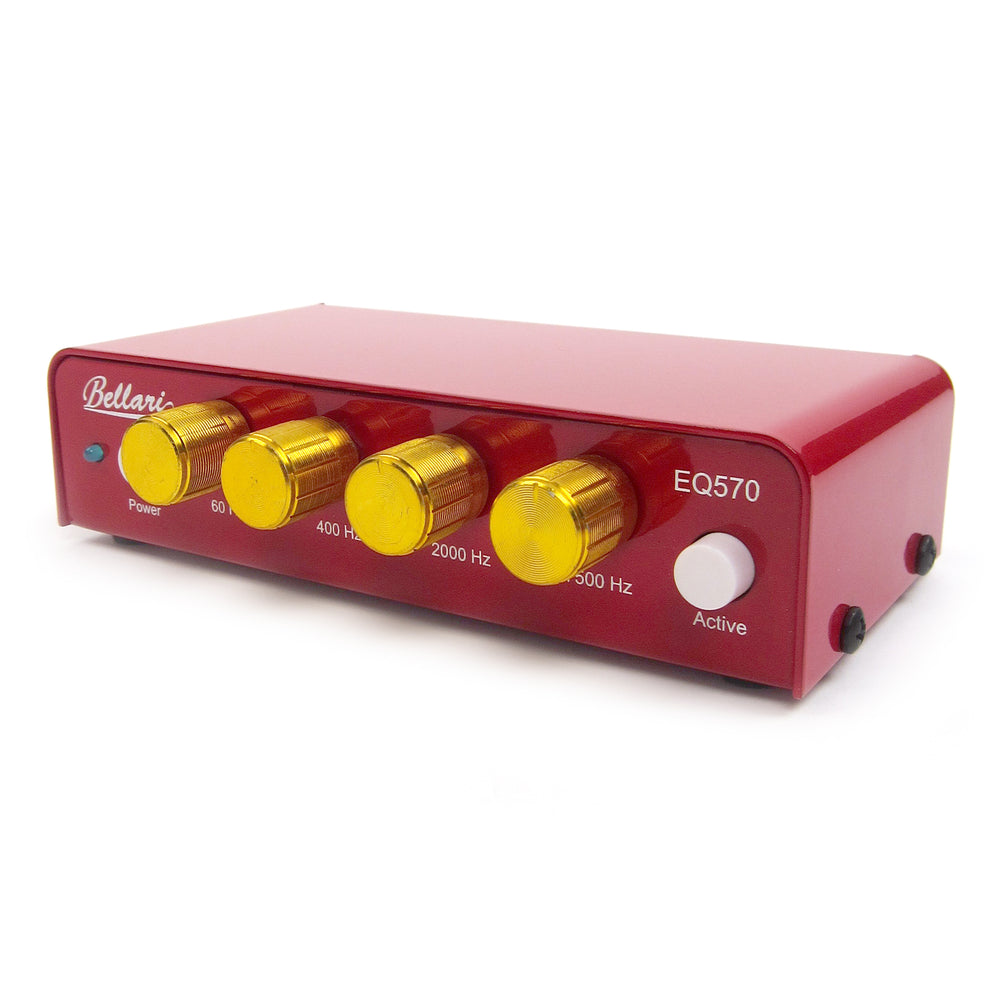

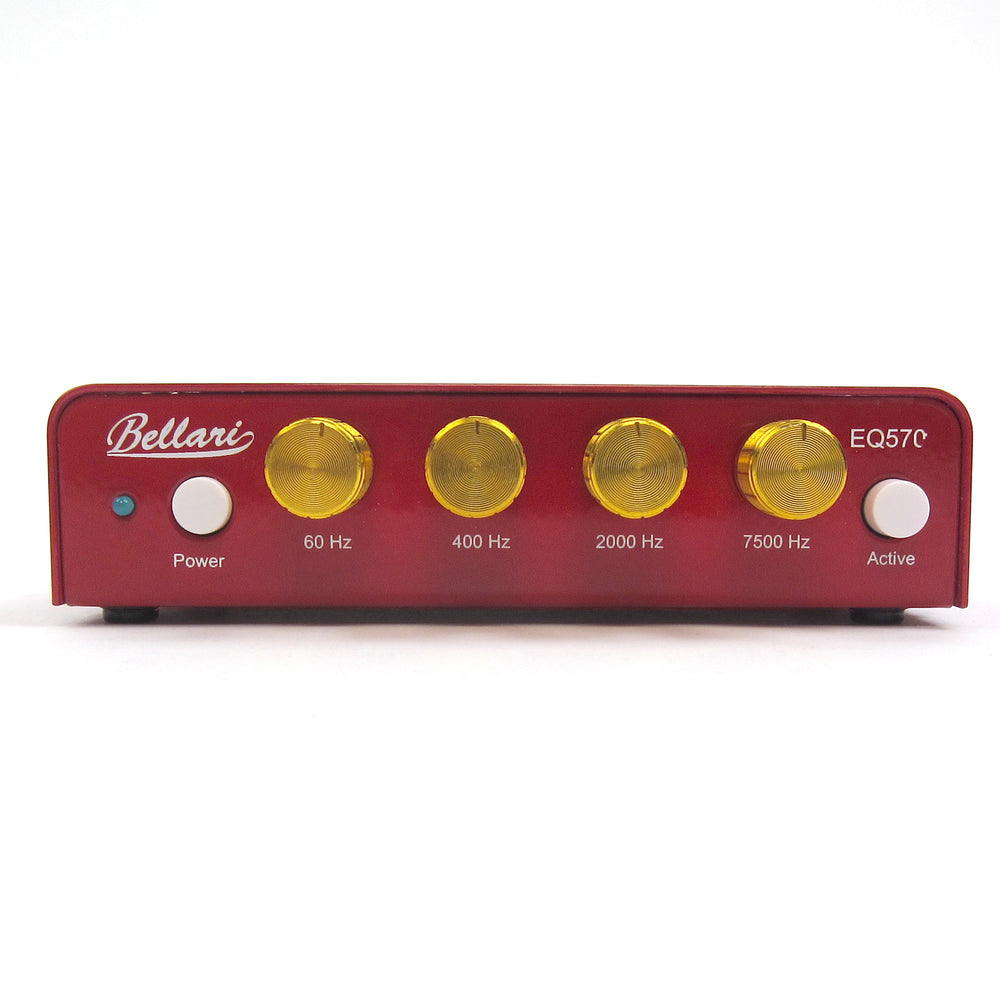

  • 4-band equalizer w/¬†rotary frequency¬†controls
  • use¬†to improve + fine tune audio signal from any RCA source - phono, DAC, CD, phone, tablet, or entire hifi system¬†
  • when used w/ vinyl,¬†signal must be amplified to¬†line level (via phono preamp or line-level turntable)
  • true bypass function - "Active" button allows you to¬†bypass EQ to¬†output the original unaltered signal

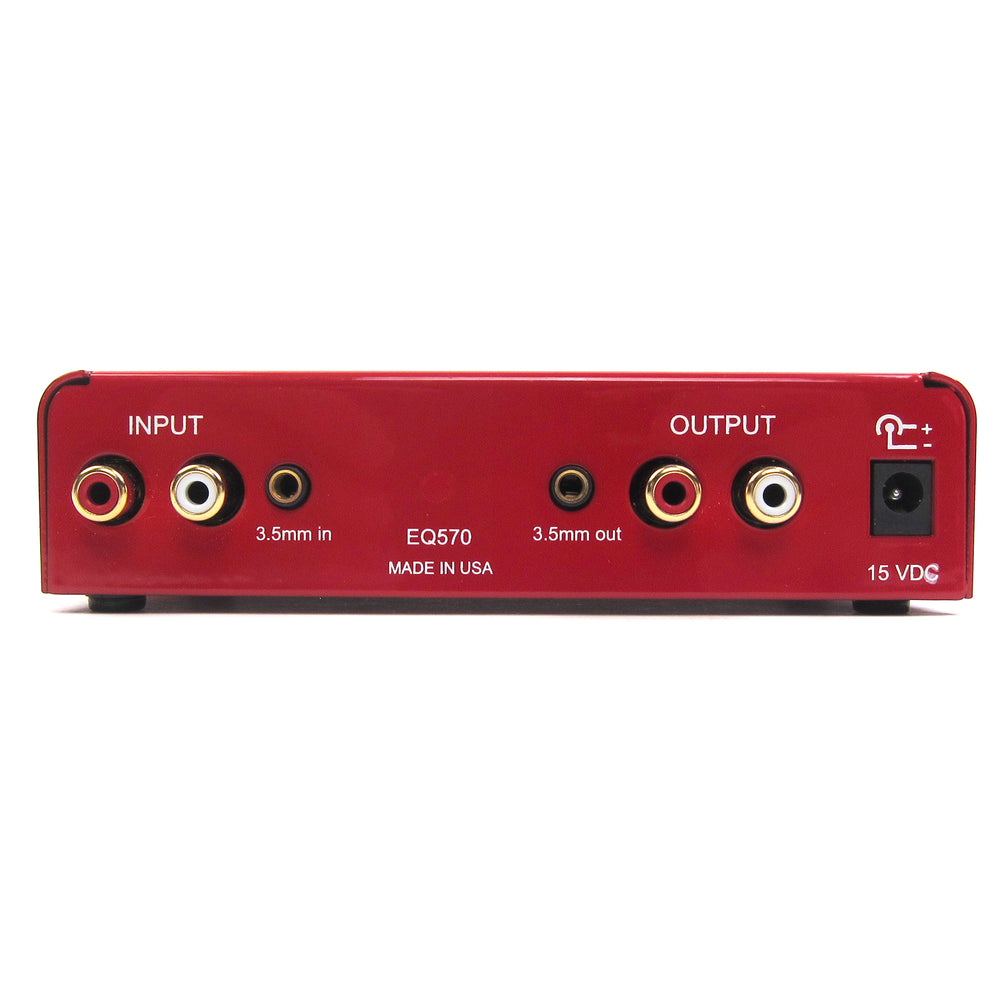

  • solid construction w/ all metal casing, gold-plated RCA inputs¬†+ outputs
  • hand¬†built in Salt Lake City, Utah

"The 2019 EQ570 is a solid, well built four-band EQ with extremely low phase shift, and gradual curve filters that make it one of the most musical sounding EQ’s we have ever built." - Bellari

ūüĒĎKEY FEATURES

  • adjustment: +/-12dB for 60Hz and 7500Hz /¬†+/-6dB for 400Hz and 2000Hz
  • input Impedance:¬†47k
  • output impedance:¬†47 ohms
  • frequency response: 5Hz to 154kHz
  • THD: .003% @ 1KHz
  • S/N Ratio: >100¬†dB unweighted
  • dimensions: 5.5"w x 3.5"d x 1.25"h / 140 x 89 x 32mm
  • weight: .8 lbs / 362g

ūüď¶COMES WITH

  • power supply

UPC: 675889057003
