📌LAB POINTS

• unique synth w/ powerful and flexible sound engine, newly upgraded "M" model built-in speaker/mic, improved performance+connectivity
• playful and intuitive controls
• runs off customizable patches loaded via USB drive
• onboard hardware for sound input and output
• mappable knobs, keys and buttons enable patches to synthesize, sample, and effect
• high contrast OLED screen
• handsome powdered aluminum top enclosure
• MIDI I/O, dual USB ports + HDMI out
• also available in blue

⬆️UPGRADES IN "M" MODEL

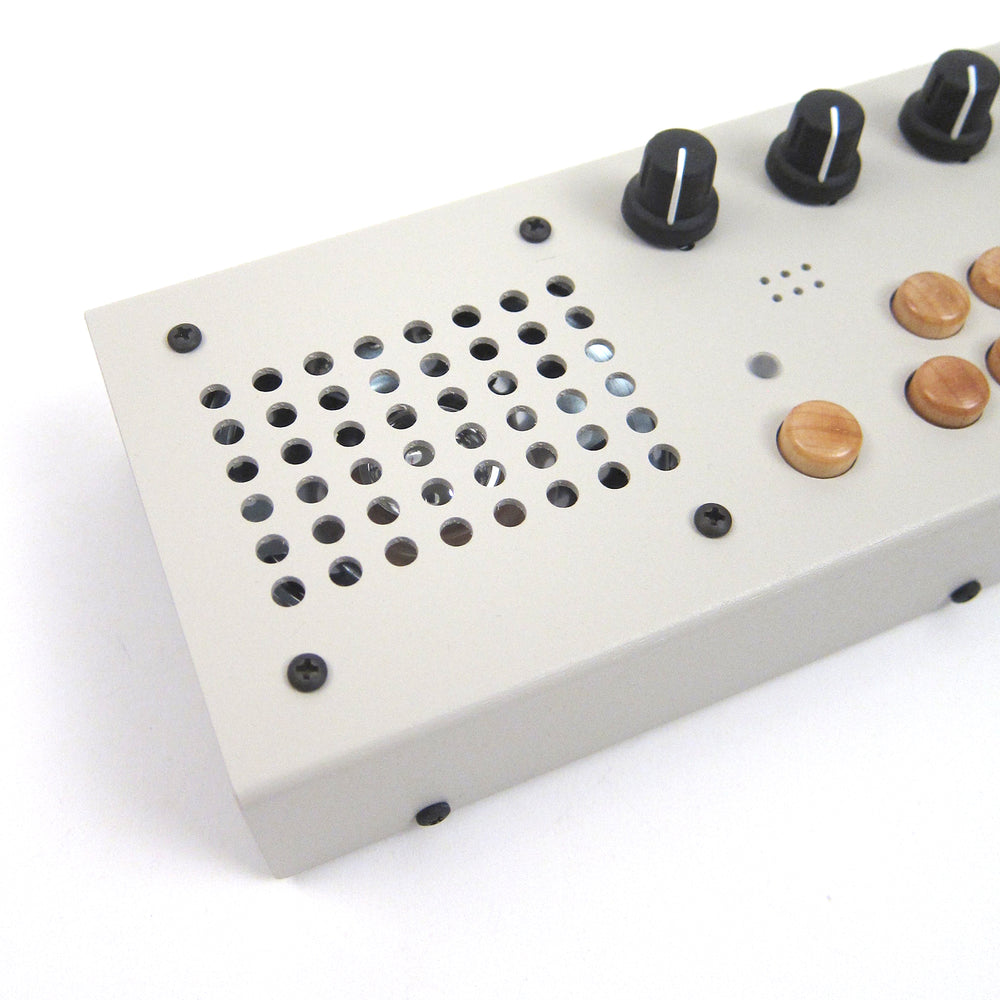

• built-in speaker + microphone
• can be powered by (4)x AA batteries for true portability
• dedicated MIDI I/O jacks for easy integration w/ other outboard gear
• faster processor + double the RAM as previous versions
• improved web interface for patch management and Link sessions

"The Organelle makes it easy to explore new sounds and experiment with new ways of making music. It combines playful and intuitive controls with a powerful and flexible sound engine. The result is an instrument that is limitless in musical possibility and a joy to play." - Critter & Guitari

🔑KEY FEATURES

• enclosure: powder coated aluminum top, ABS Plastic bottom, rubber foot pads
• sampling rate: 44.1kHz; 16-bit (In & Out)

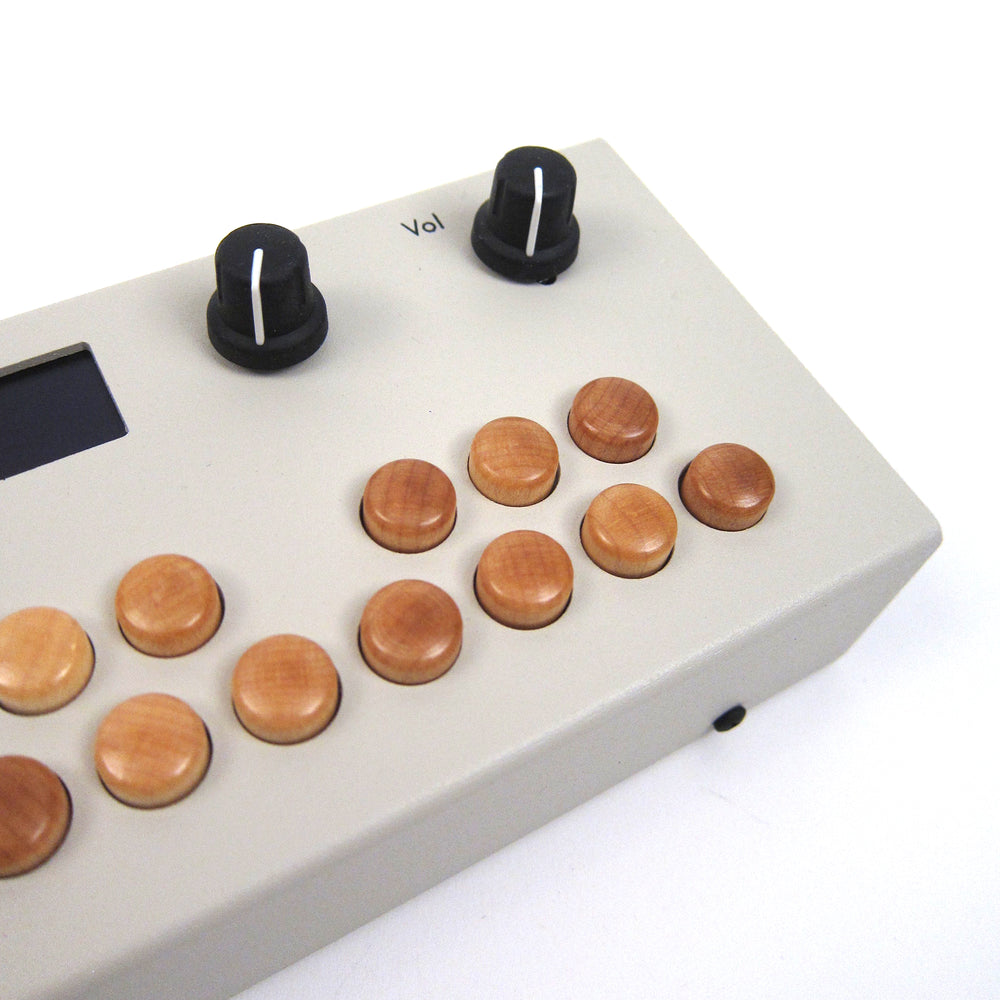

• mappable controls: 25x Maple Keys, 4x Parameter Knobs
• rotary Selection knob with Push Button Select
• 1x RGB LED
• processor specifications: 1.2GHz ARM Cortex A53 (Quad-core; 64-bit) w/ 1GB RAM
• operating system: Linux

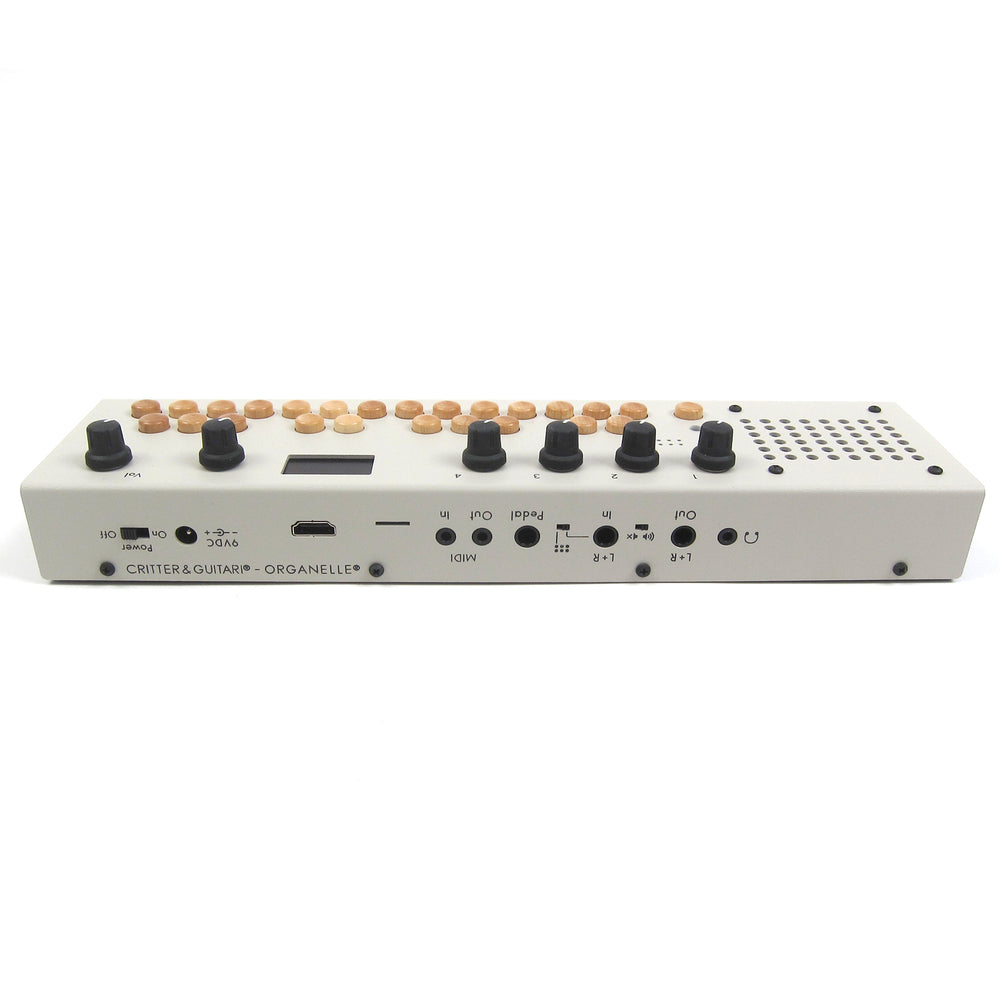

• input: ¼" stereo jack
• output: ¼" stereo jack / ⅛" stereo headphone jack

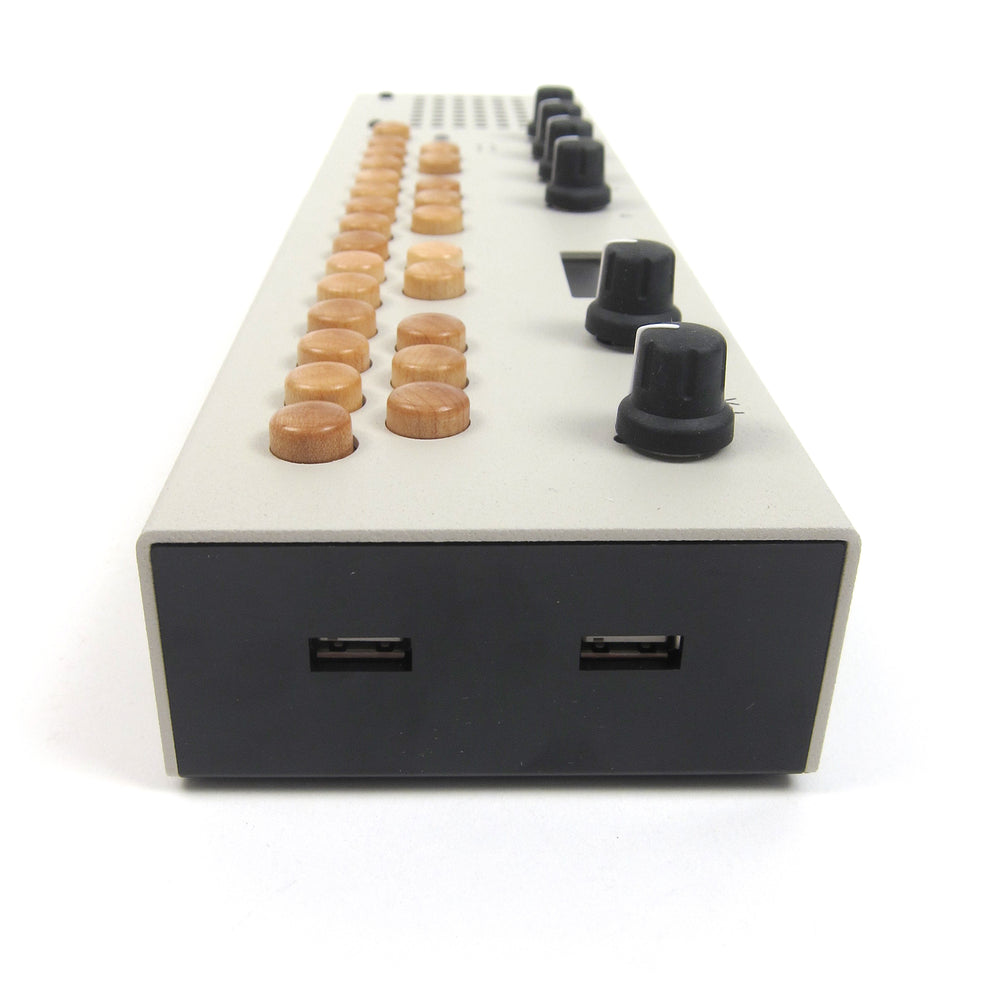

• other connections: 2x USB Port (2.0 standard-A type connector). USB Host for: MIDI over USB & Serial over USB / HDMI output port / 1/4" foot switch jack
• MIDI I/O:  ⅛" TRS MIDI Input Jack (Type A) / ⅛" TRS MIDI Output Jack (Type A)
• power: 9VDC, 1.0 Amp (Power Supply included) or 4x AA batteries (not included)
• dimensions: 13.3" x 3.3" x 2.1" / 33.81 x  8.57 x 5.40cm
• weight: 1.45 lbs / 657g

📦COMES WITH

• Power Supply
• USB-WiFi adapter w/ Ralink 5370 chipset
