šLAB POINTS

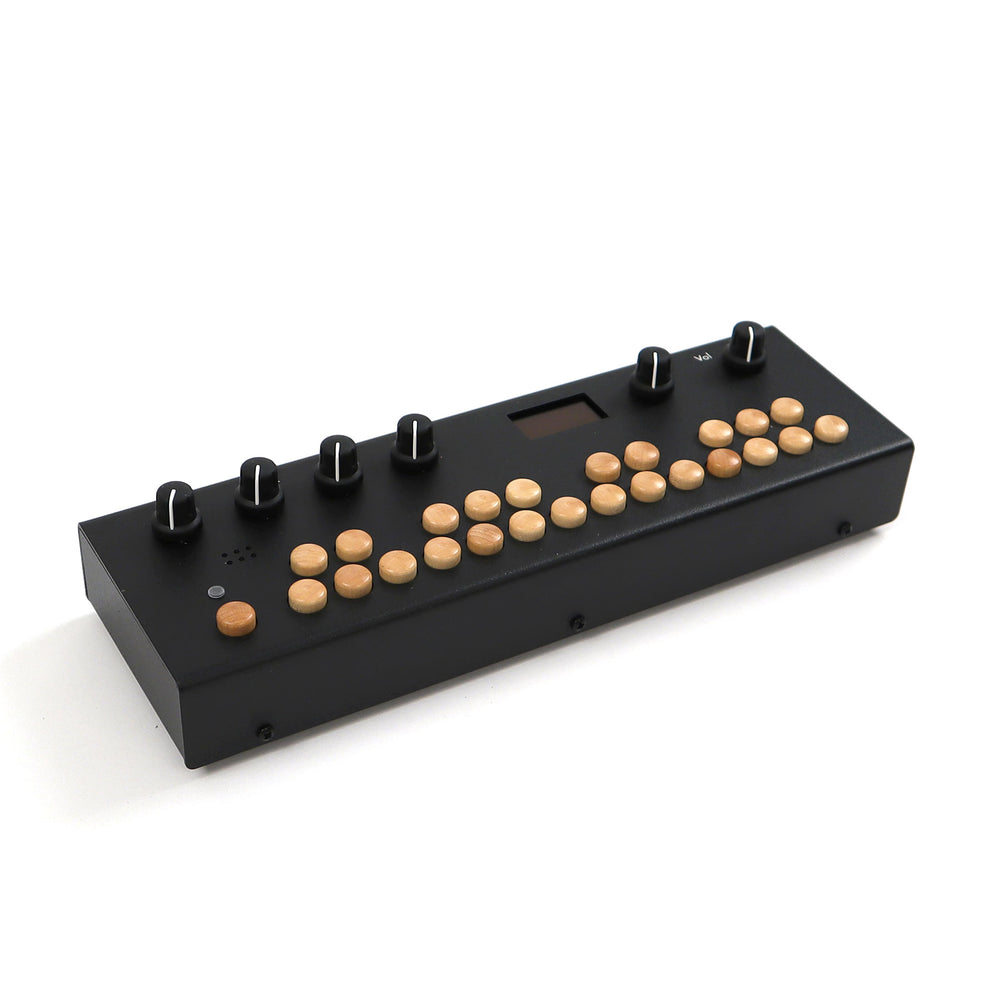

- unique synth w/ powerful and flexible sound engine
- simplified version of the Organelle M - does not include built-in speaker or battery powerful, otherwise identical
- playful and intuitive controls
- runs off customizable patches loaded via USB drive
- onboard hardware for sound input and output
- mappable knobs, keys and buttons enable patches to synthesize, sample, and effect
- high contrast OLED screen
- built-in microphone
- handsomeĀ powdered aluminum top enclosure
- MIDIĀ I/O, dual USB ports + HDMI out
"The Organelle makes it easy to explore new sounds and experiment with new ways of making music. It combines playful and intuitive controls with a powerful and flexible sound engine. The result is an instrument that is limitless in musical possibility and a joy to play." - Critter & Guitari
šKEY FEATURES
- enclosure: powder coated aluminum top, ABS Plastic bottom, rubber foot pads
- sampling rate:Ā 44.1kHz; 16-bit (In & Out)
- mappable controls: 25x Maple Keys, 4x Parameter Knobs
- rotary Selection knob with Push Button Select
- 1x RGB LED
- processor specifications: 1.2GHz ARM Cortex A53 (Quad-core; 64-bit) w/ 1GB RAM
- operating system: Linux
- input: ¼" stereo jack
- output: ¼" stereo jackĀ / ā
" stereo headphone jack

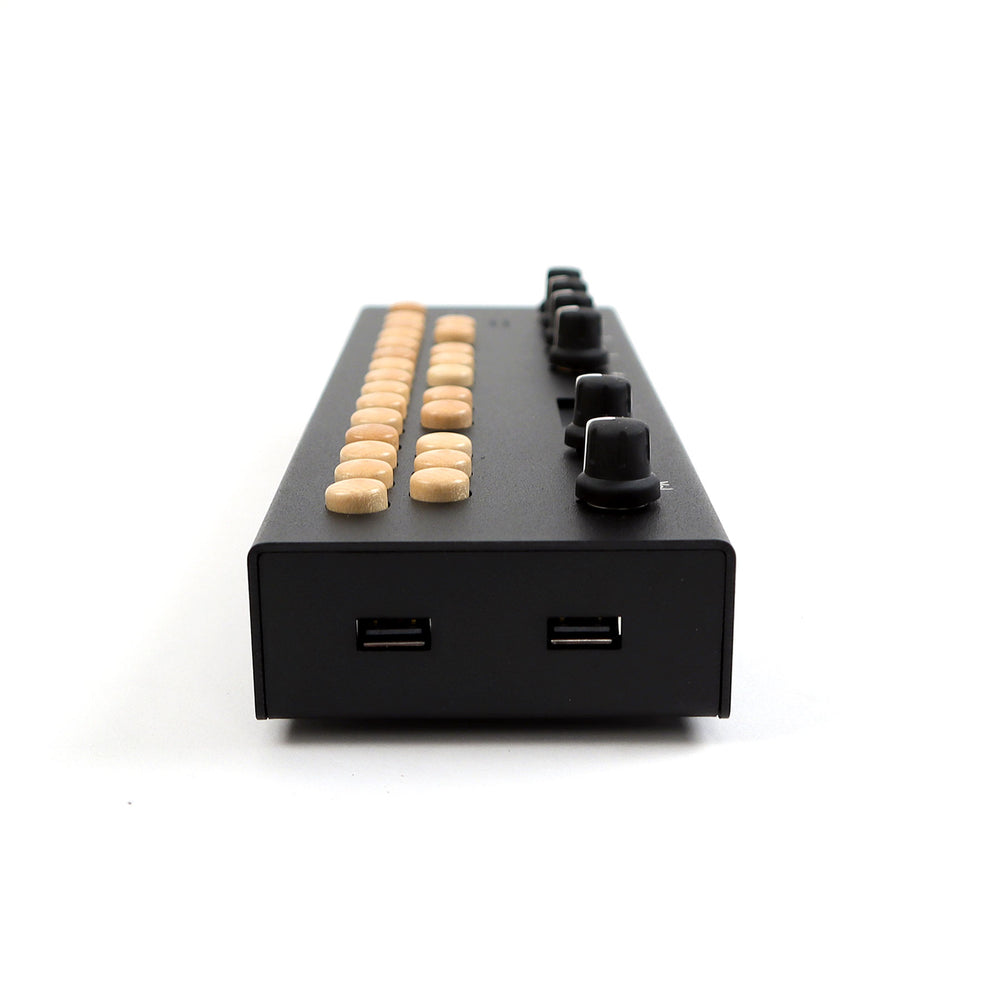

- other connections: 2x USB Port (2.0 standard-A type connector). USB Host for: MIDI over USB & Serial over USB / HDMI output port / 1/4" foot switch jack
- MIDI I/O:Ā ā
" TRS MIDIĀ Input Jack (Type A) / ā
" TRS MIDIĀ Output Jack (Type A)
- power: 9VDC, 1.0 Amp (Power Supply included)
- dimensions: 10.6" x 3.3" x 2.1" /Ā 270 x Ā 85.7 x 55.2mm
- weight:Ā 1.09 lbs / 495g
š¦COMES WITH
- Power Supply
- USB-WiFi adapter w/ Ralink 5370 chipset
