Mini Plus Phono Preamp (MMINIPLUS)

SKU eq-1436-ttlsf

delivers warm, balanced sound, made in USA
Write a review
| Ask a question
sale $149.00
TTL Rewards icon Earn up to 1490 Reward Points with this purchase! Read more
  • Get more info on our FREE SHIPPING terms
  • šŸ“¦ Standard Shipping ships within 1-3 Business Days
  • šŸŒŽ International Shipping Experts, Fully Tracked
  • ā‡Ø Need a gear recommendation or a customized package?
  • Contact our support team for all your questions!

    Contact support for recommendations or customization questions

    We answer requests Mon-Fri 10am-6pm EST

  • Lab Overview
  • Review & Q+A
  • Tagged

Lab Overview

šŸ“ŒLAB POINTS

  • high quality phono preampĀ for MM (Moving Magnet) or high output MC (Moving Coil) cartridges

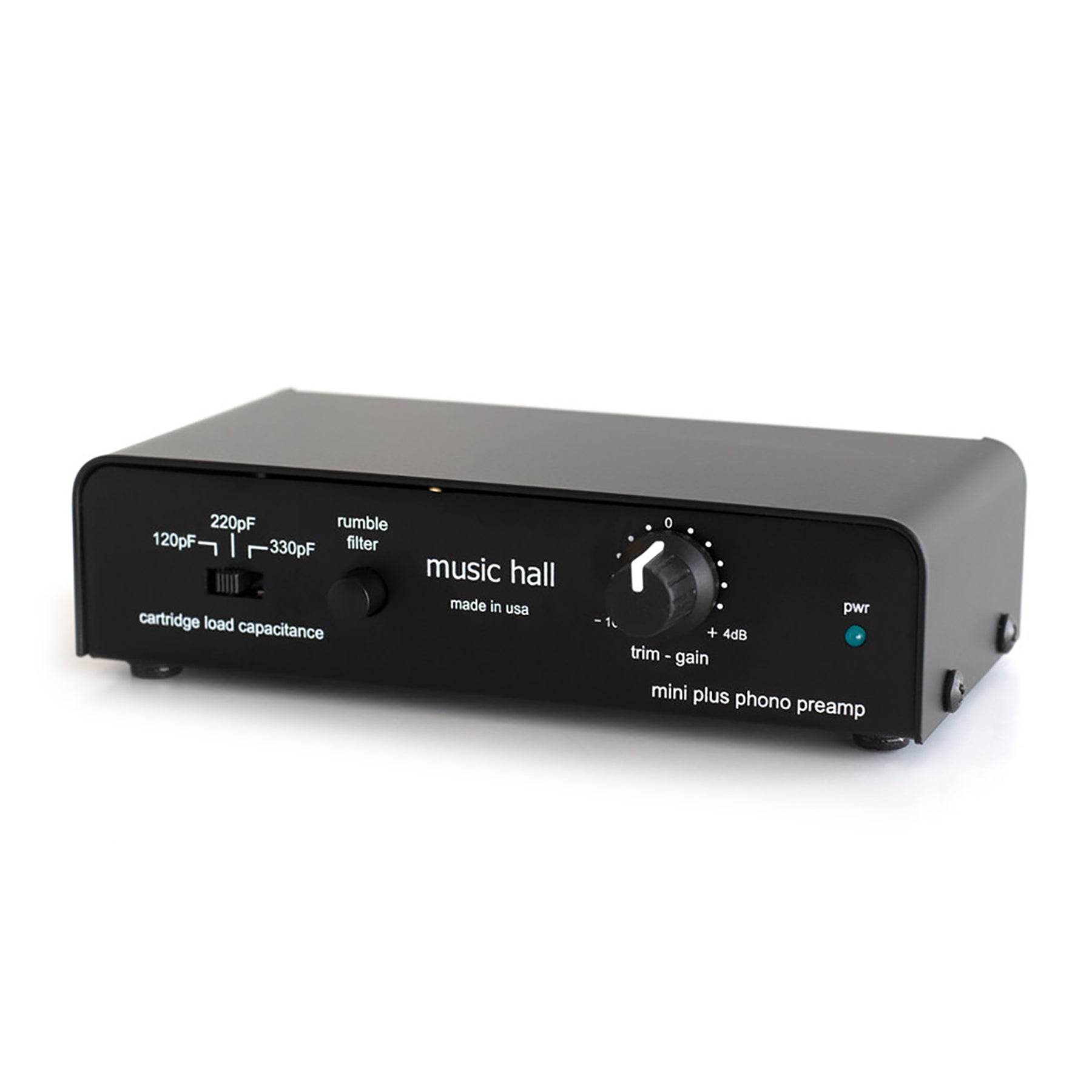

  • selectable cartridge load capacitance allows subtle soundĀ optimizationĀ for your MM cartridge
  • ultra quiet operation
  • rotaryĀ trim/gainĀ control on front side + rumble filter for cuttingĀ very low frequencies (below 20 Hz)
  • high grade headphone amp w/ independent rear headphone/line output (3.5mm)

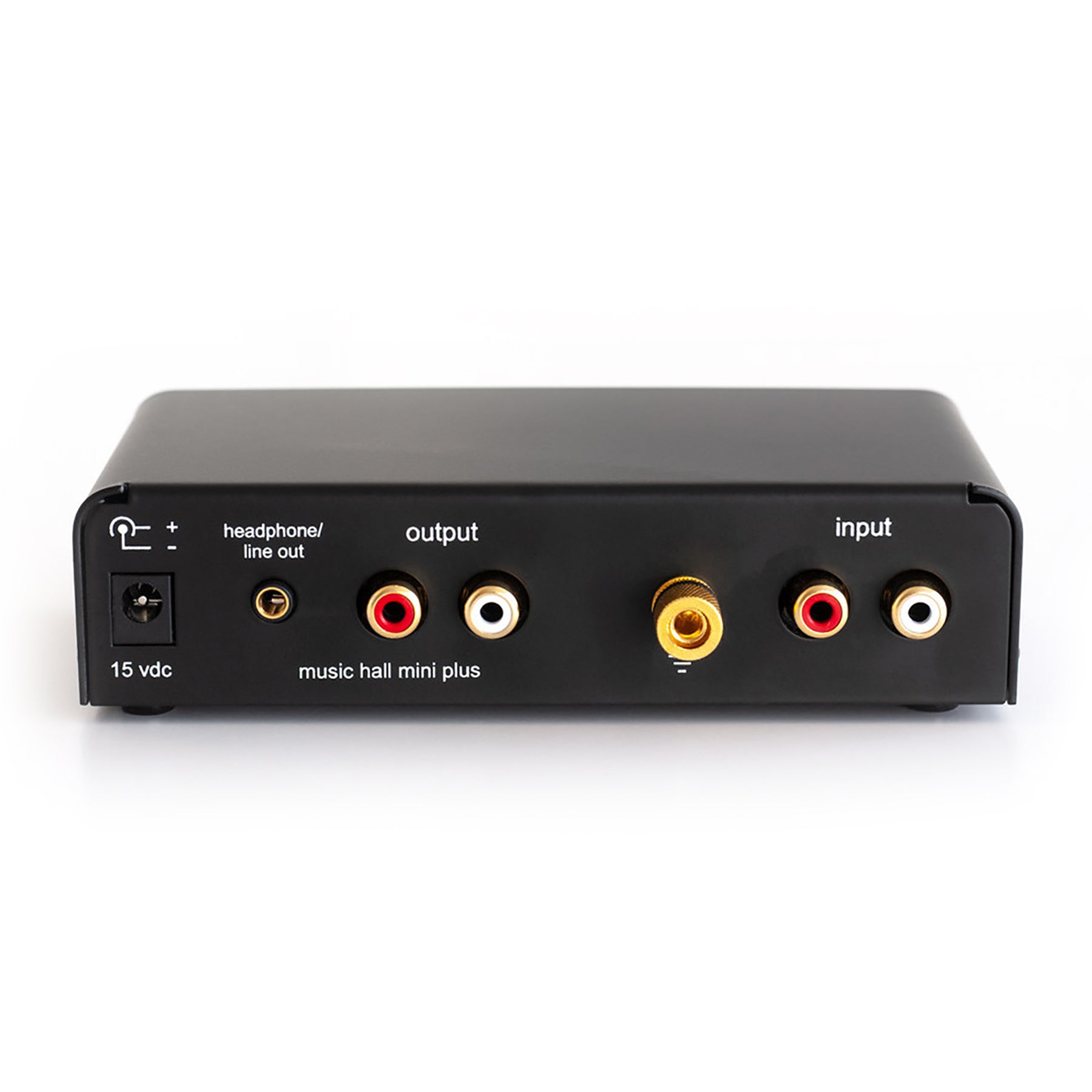

  • gold-plated RCA inputs and outputs, and grounding connection
  • metal casing w/ vibration damping feet
  • madeĀ in the USA

"The music hall mini plus phono pre-amp is a perfect solution for attaching a turntable to today's audio equipment. It's a low-noise, high quality phono pre-amp designed to work with moving-magnet and high-output moving-coil cartridges. The chassis helps ward off the effects of stray magnetic fields and provides a safe quiet environment for the sensitive electronics it houses thus providing you with the best sound possible from your turntable." -Ā Music Hall

šŸ”‘KEY FEATURES

  • input: RCA + 1/8" TRS stereo
  • gain:Ā 41.51 dB gain @ 1kHz at 0 setting /Ā 31.64 dB gain @ -10 setting /Ā 45.66 dB gain @ +4 setting
  • input Impedance: 47k
  • output impedance:Ā 32 ohms headphone / 470 ohms RCA
  • frequency response: 3Hz to 36kHz
  • THD: .005% @ 1KHz
  • dimensions: 5.5"w x 3.5"d x 1.25"h / 140 x 89 x 32mm
  • weight: 2 lbs / 0.9g

šŸ“¦COMES WITH

  • power supply
UPC: 675889005998, 675889005998
