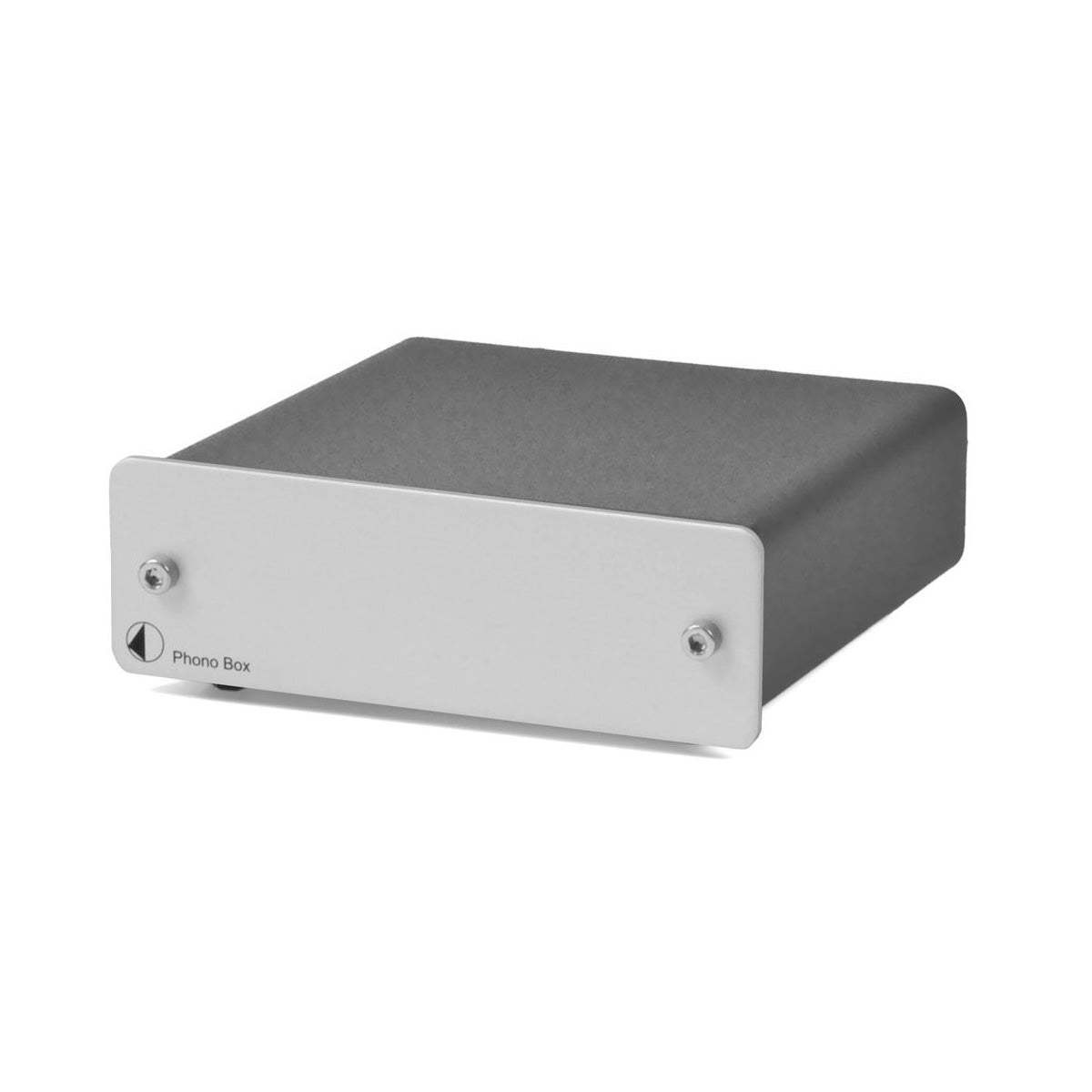

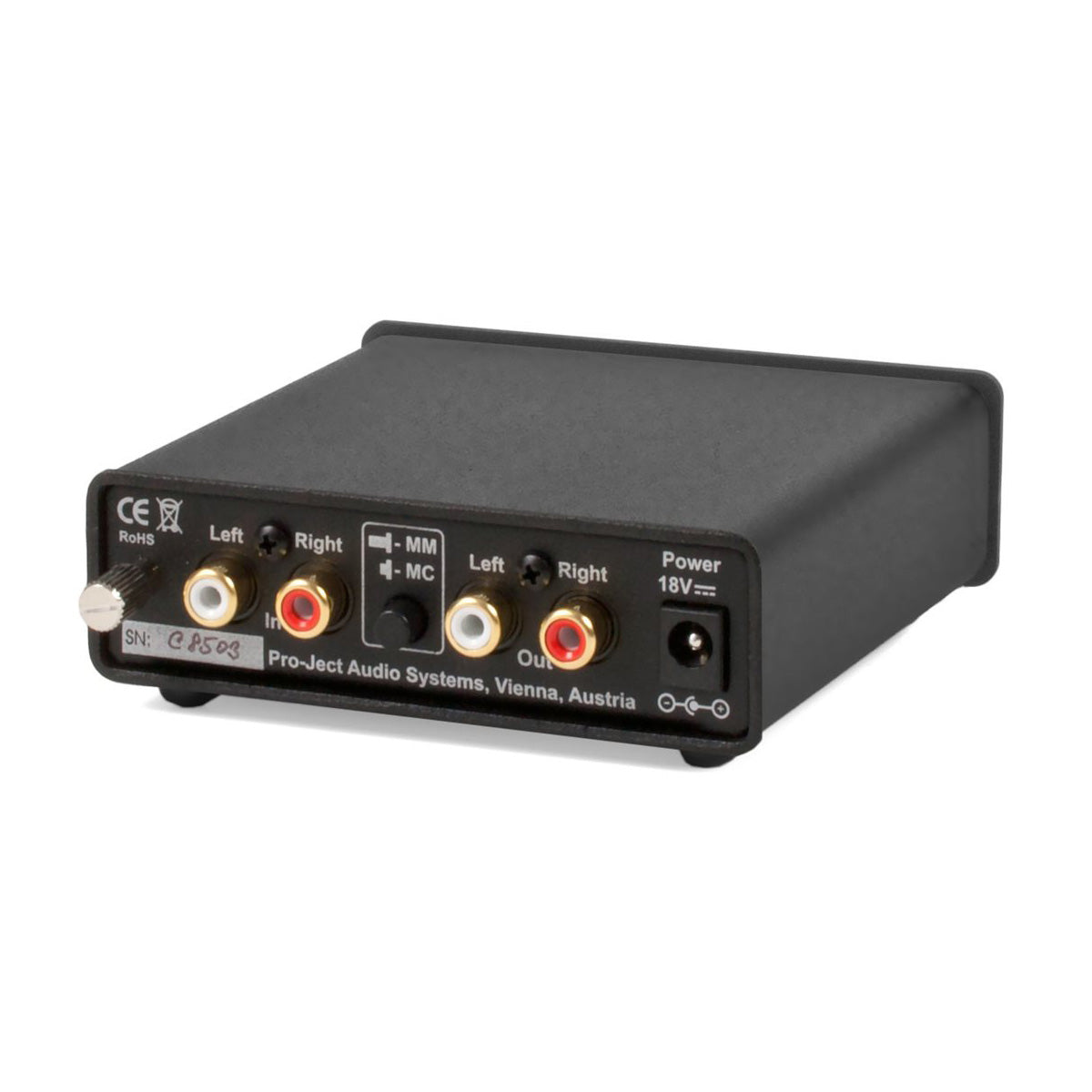

Phono Box DC Phono Pre-Amp - Silver

SKU eq-940-ttlsf

staple audiophile preamp
2 Reviews
| 1 answered question
sale $149.00
TTL Rewards icon Earn up to 1490 Reward Points with this purchase! Read more
  • Get more info on our FREE SHIPPING terms
  • 📦 Standard Shipping ships within 1-3 Business Days
  • 🌎 International Shipping Experts, Fully Tracked
  • ⇨ Need a gear recommendation or a customized package?
  • Contact our support team for all your questions!

    Contact support for recommendations or customization questions

    We answer requests Mon-Fri 10am-6pm EST

  • Lab Overview
  • Review & Q+A
  • Tagged

Lab Overview

LAB POINTS

  • audiophile-grade phono preamp
  • allows you to plug a turntable directly into a stereo system, amplifier, computer, or any other device that takes line level input
  • gold plated RCA inputs and outputs
  • high quality metal casing offers shielding from both vibration and electromagnetic interference
  • new "green" DC power supply (extremely low idle power usage)
  • switch for Moving Magnet (MM) and Moving Coil (MC) cartridges (most cartridges are MM)
  • low noise, low distortion
  • flat RIAA equalization curve with 60dB of gain (MC), 40 dB gain (MM)
  • also available in USB version



KEY FEATURES

  • Input Impedence MM: 47k ohms / 120pf
  • Input Impedence MC: 100 ohms / 120pF
  • Gain MM: 40dB
  • Output Voltage MM: 300mV / 1 kHz or 3mV
  • Gain MC: 60 dB
  • Output Voltage MC: 200 mV / 1 kHz or 0.3 mV
  • Noise MM: 86 dB (94 dB - A weighted)
  • Noise MC: 68 dB (75 dB - A weighted)
  • THD: MM 0.01% / MC 0.05%
  • Max. Output: 9.5 V
  • RIAA EQ Curve Accuracy: 20 Hz - 20 kHz / max 0.5 dB
  • Power Consumption: 18 V / 80 mA DC
  • Power Supply: 18 V / 500 mA DC
  • Dimensions (WHD): 4.1 x 1.4 x 4.1 in., 103 x 36 x 103 mm
  • Weight: 1.3 lbs., 570 g

COMES WITH

  • power supply
UPC: 9120035827227
