📌LAB POINTS
- 65 watts-per-channel integrated amplifier w/ analog + digital outputs / inputs plus aptX Bluetooth HD connectivity
- original design based on classic integrated amplifiers from British hi-fi brand Leak
- dedicated MM (moving magnet) phono stage
- premium ESS Sabre32 Reference DAC for high-quality digital-to-analog conversion
- class AB amplification for detailed and powerful audio performance
- binding post speaker terminals for outputting to passive speakers
- RCA stereo output pair for outputting to powered speakers
- coaxial + optical inputs + outputs
- detachable power cord
"The LEAK STEREO 130 is a high performance, high-fidelity integrated amplifier for the modern-day audio enthusiast. It is designed to be the perfect match to a wide variety of both analog and digital sources, thanks to its diversity of inputs. It has a built-in Moving Magnet (MM) phono pre-amplifier which allows for direct connection to turntable record players. You can also stream music to the LEAK STEREO 130 from any Bluetooth device such as portable music players and smartphones via innovative built-in aptX and AAC codec." - Leak Audio
🔎TECH SPECS
- DAC: ESS Sabre32 Reference ES9018K2M
- Input Sampling Rates: Optical, Coaxial: 44.1kHz~192kHz; USB: 44.1kHz~384kHz (PCM)/DSD64, DSD128, DSD256
- Rated Output Power: 2 x 45W (8ohm) / 2x65W (4ohm)
- Total Harmonic Distortion: < 0.005% (30W, 8ohm)
- Frequency Response: 20Hz-20kHz (+/-0.5dB)
- Input Sensitivity: 480mV (RCA AUX IN); 4.1mV (phono MM)
- Input Impedance: 10Kohm (AUX) ; 47Kohm //100pF (phono MM)
- Signal to Noise Ratio: ≥108dB (A-weighted, ref.45W)
- Pre Output Level: 4
- Pre Output Total Harmonic Distortion (THD): < 0.003%
- Pre Output Signal to Noise Ratio: >110dB (A-weighted)
- Bluetooth: A2DP, aptX (priority), SBC

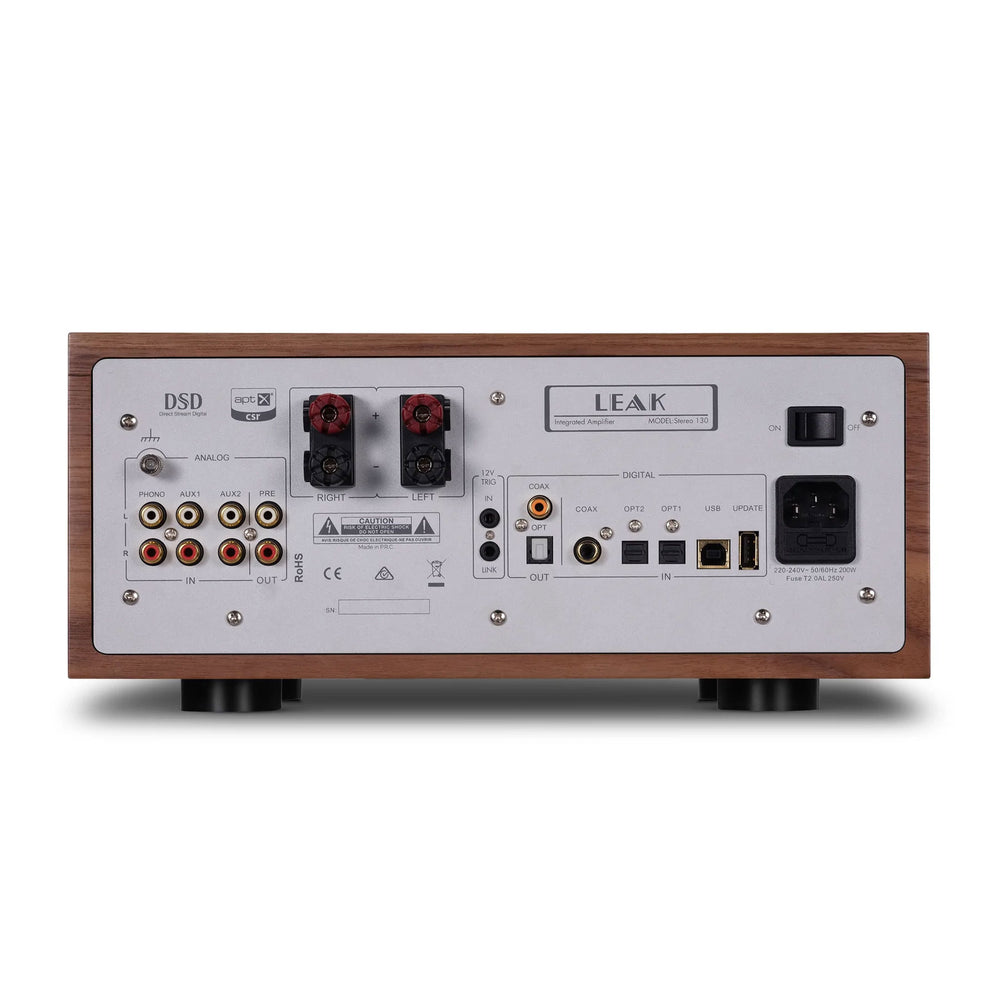

- USB Input: 1 x USB (B-type)
- Digital Audio Inputs: 2 x Optical TOSlink ,1 x RCA COAX
- Digital Audio Outputs: 1 x Optical TOSlink ,1 x RCA COAX
- Analog Inputs: 2 x RCA (AUX1, AUX2) ,1 x RCA (phono MM)
- Analog Output: 1 x RCA (PRE OUT)
- Power Requirement: 100-120V ~ 50/60Hz
- Dimensions (W x H x D): 12.83" x 5.74" x 10.86" / 326 x 146 x 276mm
- Weight: 18.29 lbs / 8.3 kg
