📌 LAB POINTS

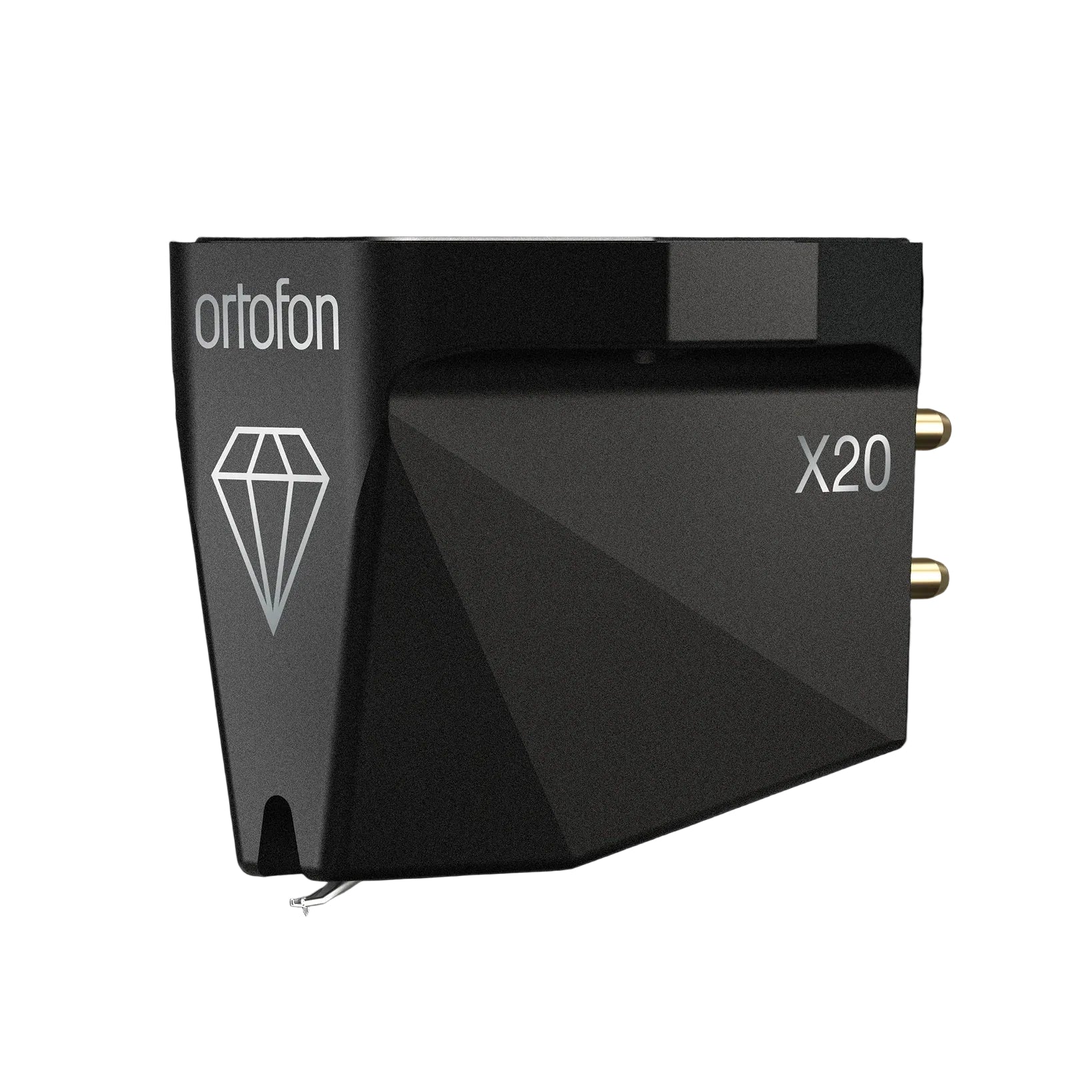

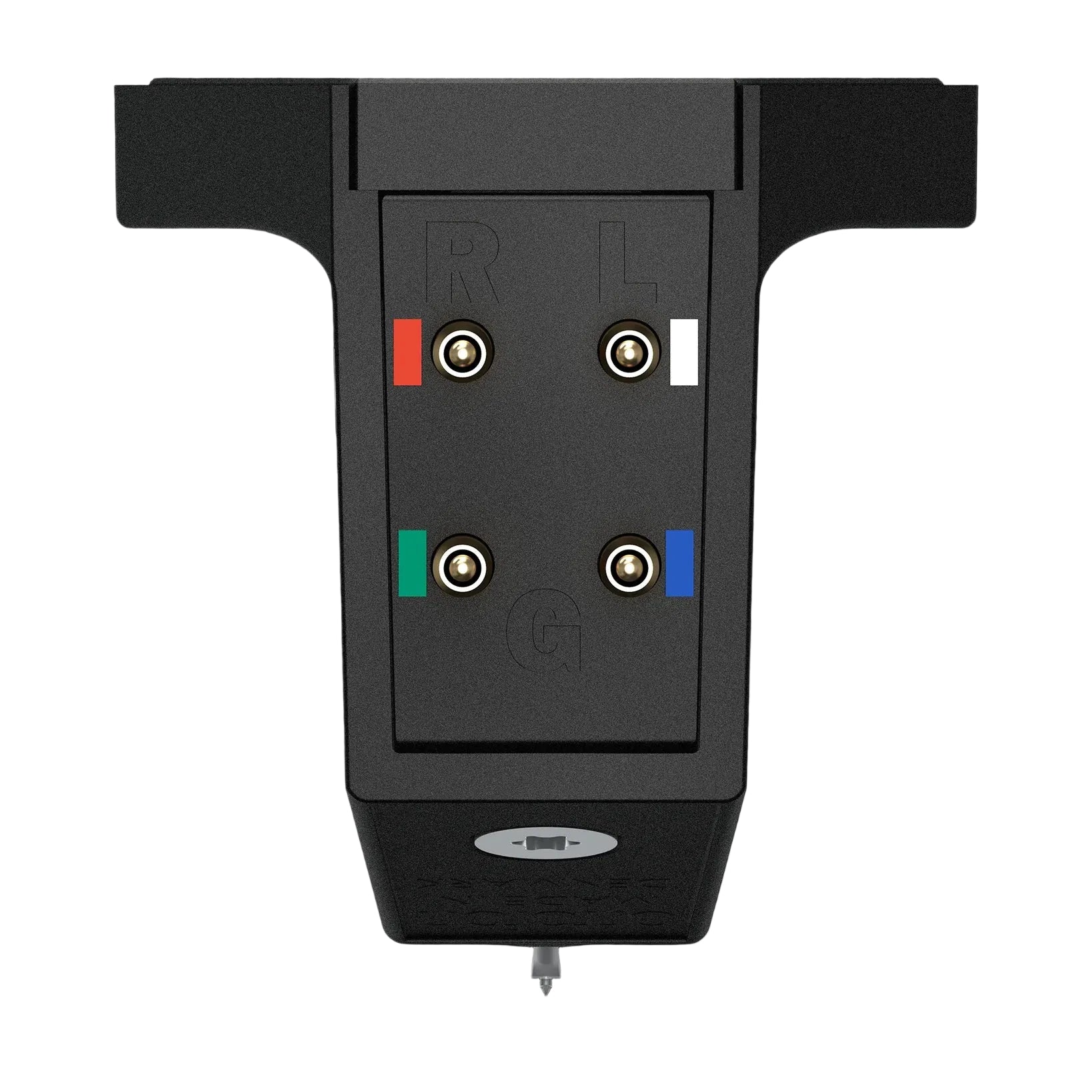

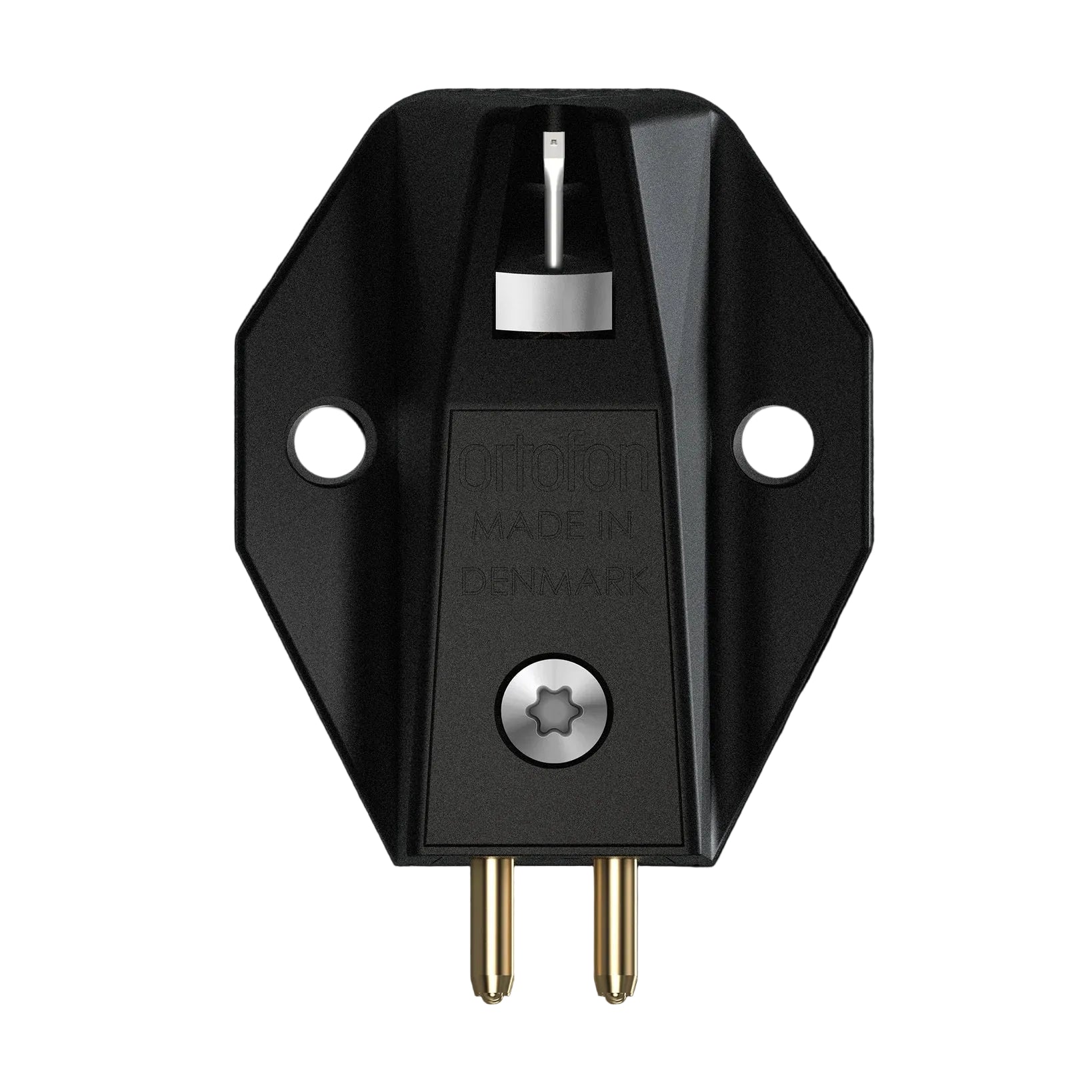

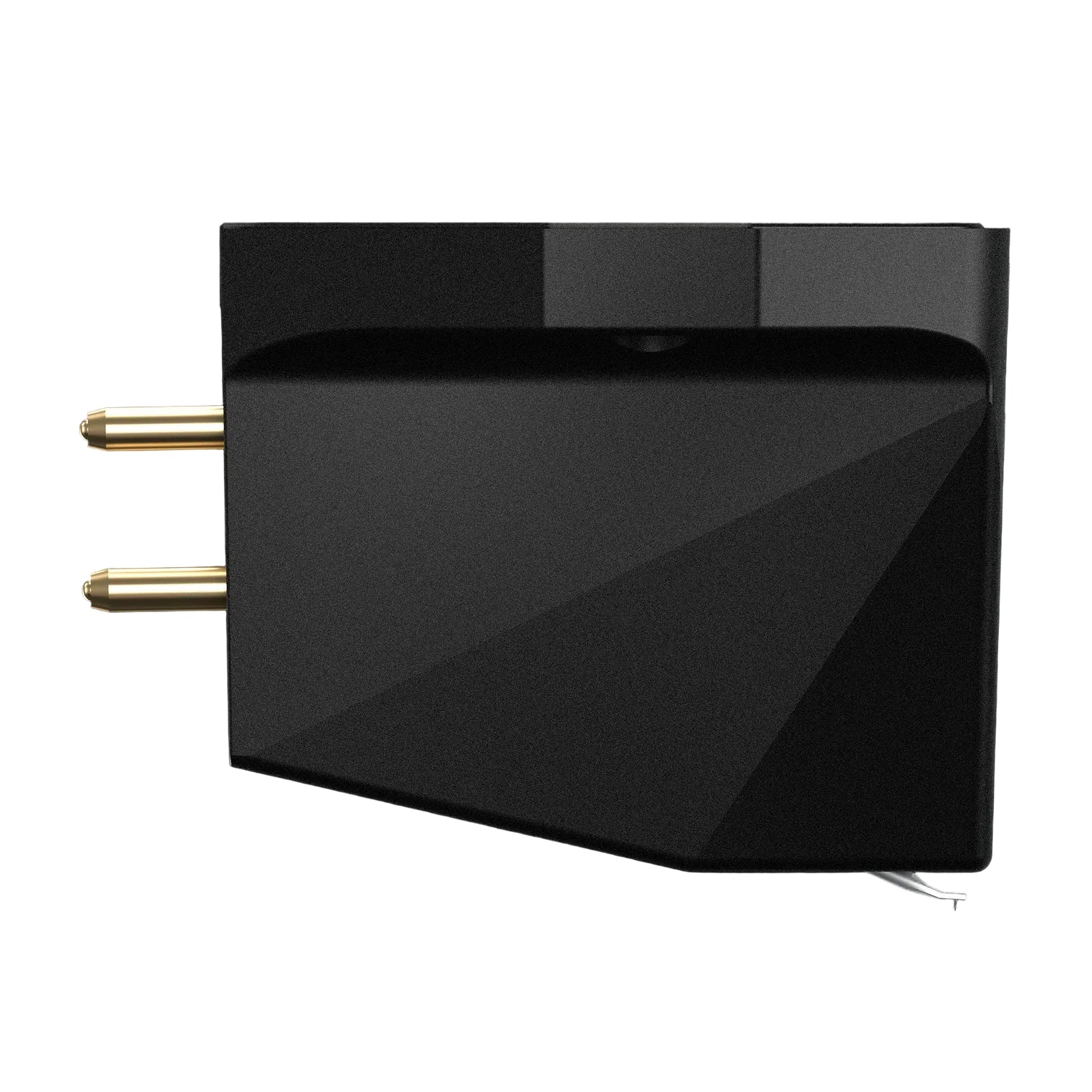

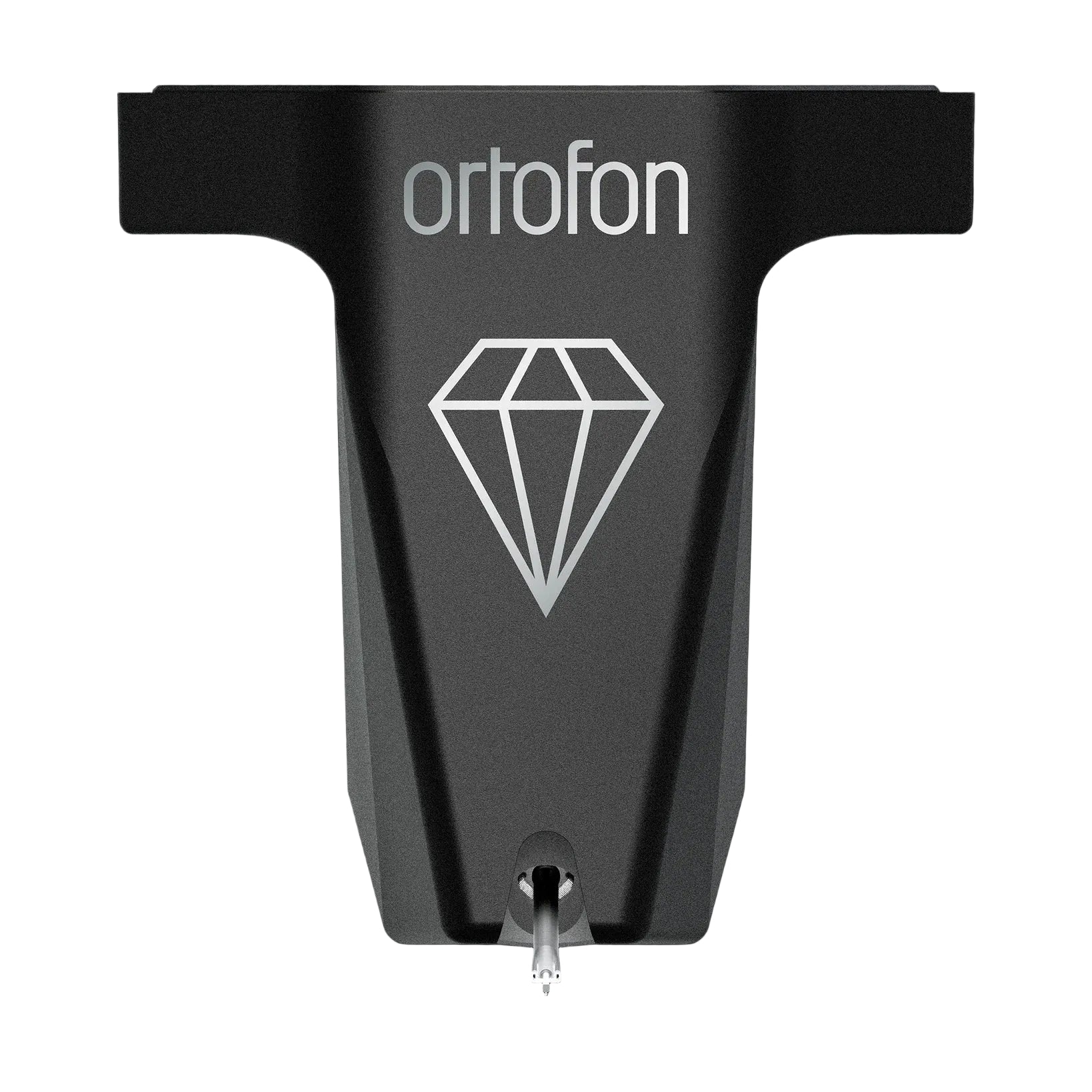

- step-up moving coil (MC) cartridge in Ortofon's new MC X series
- nude elliptical diamond stylus w/ high-purity silver quad coils

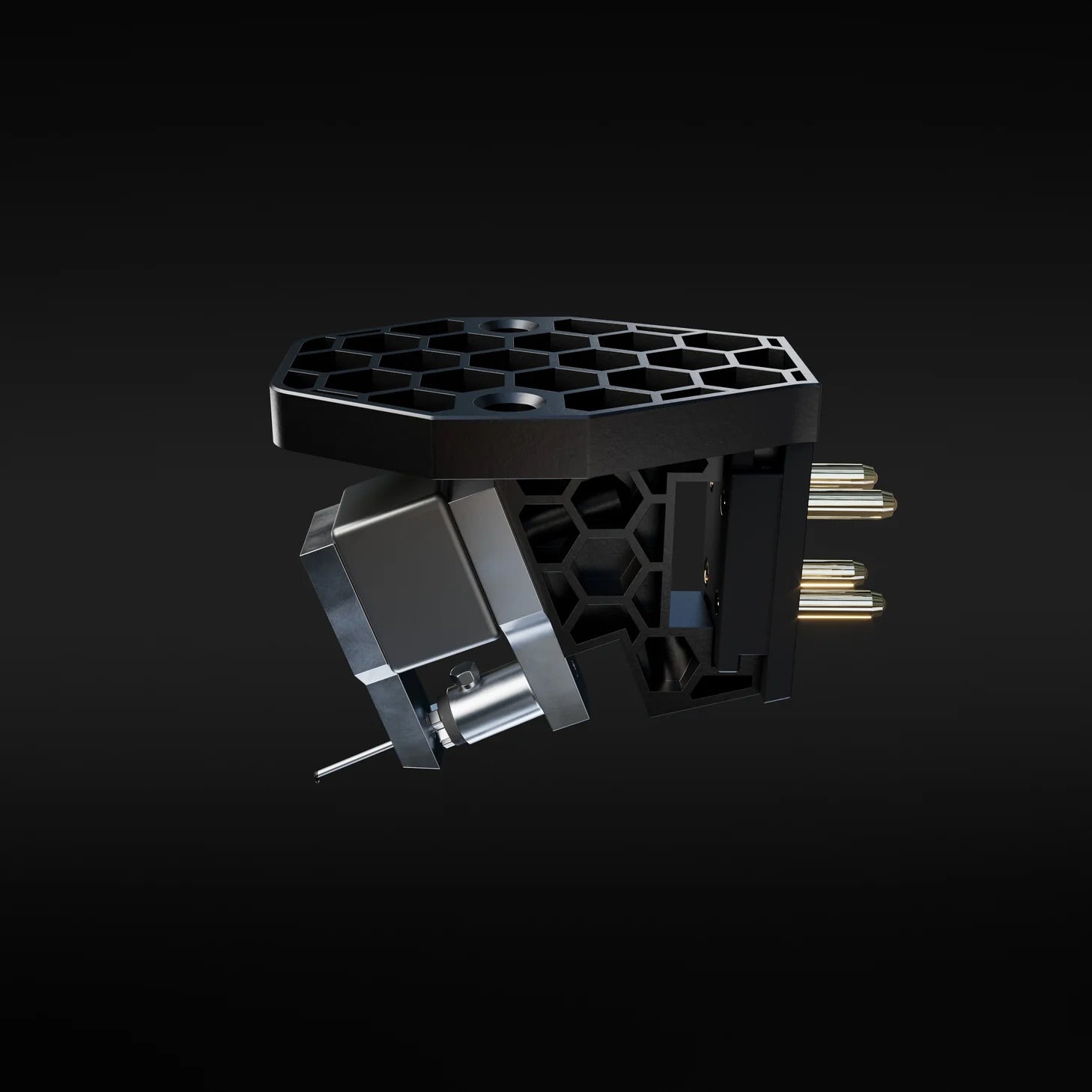

- newly developed MC X magnet system ensures a clean, powerful signal path
- custom-developed rubber dampers offer super accurate tracking & reduced distortion

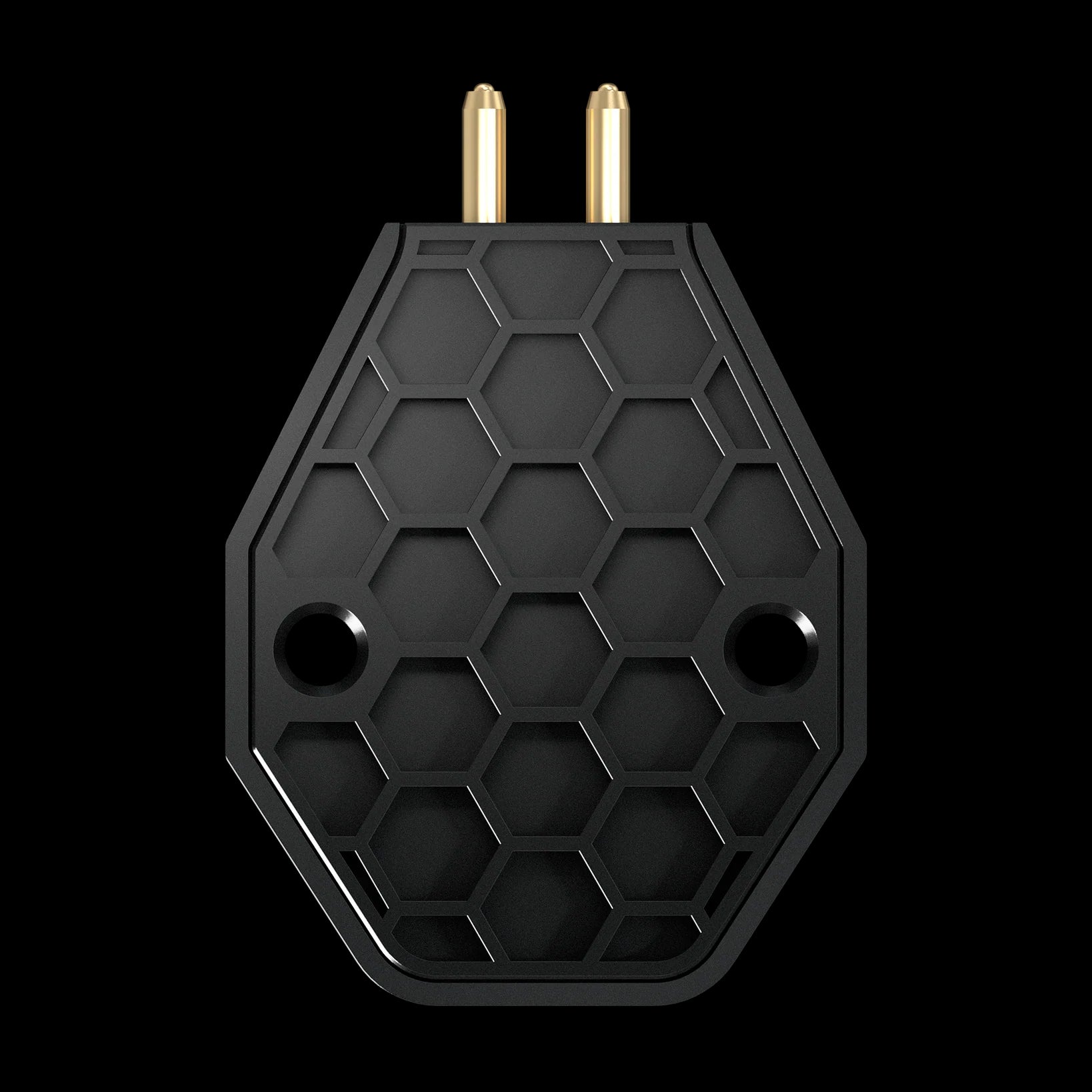

- advanced honeycomb-structured stainless steel frame, created using Metal Injection Molding (MIM) technology
- low internal impedance for compatibility with a wide range of preamps and transformers
"Go deeper into your music with the MC X20. Featuring a nude elliptical diamond stylus, it reveals greater depth and definition, uncovering the full character of each track. Rediscover your favorite records with fresh excitement and vivid precision." - Ortofon
🔑 KEY FEATURES
- cartridge type: moving coil for hi-fi listening
- stylus shape: elliptical
- stylus construction: nude diamond
- cantilever material: Aluminum
- stylus tip radius: r/R 8/18 μm
- compliance: 15 μm/mN
- output voltage: 0.4 mV
- frequency response: 20 Hz - 20 kHz +/-1 dB
- channel separation at 1 kHz: 25 dB
- internal impedance: 6 Ω
- recommended load resistance: >50 Ω
- tracking force: 2 g
- cartridge weight: 8.6 g
- replaceable stylus: no
- upgradeable stylus: no
📦 COMES WITH
- mounting screws
